CS-B1-02-G-05 Datalogic Connector Cable
Datalogic CS-B1-02-G-05 Connector Cable — Dealer, Supplier & Stockist in India
Buy the CS-B1-02-G-05 connector cordset from Industrypapa — 5 m cable. Stocked in India with a GST invoice, same-day dispatch on in-stock orders and worldwide delivery.
Product Overview

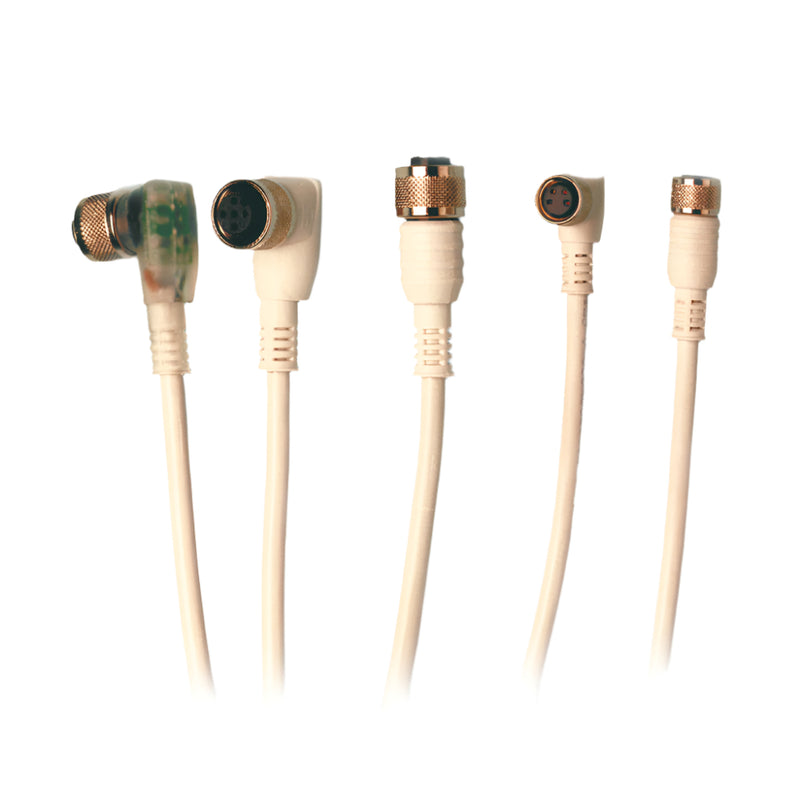

The Datalogic CS-B1-02-G-05 is a connector cordset with 5 m cable.
A cordset carries power and signal between a sensor and the control panel, and its details have to match the sensor exactly. Three things must line up: thread size (M8 or M12), pole count — three for a standard switching sensor, four when a second output or an analogue signal is used — and outlet direction, straight (axial) or 90°, which decides how much room the cable needs behind the sensor. Jacket material matters where the cable moves or sees oil: PVC for static runs, PUR for drag chains and coolant.
Manufacturer description: M8 4-p axial 5m = M8 4-p axial 5m.
CS-B1-02-G-05 Specifications
| Brand | Datalogic |
|---|---|
| Part Number | CS-B1-02-G-05 |
| Product Type | Connector Cable |
| Connector Size | M8 |
| Cable Length | 5 m |
| Outlet | Axial (straight) |
Specifications are taken from the manufacturer's published data for CS-B1-02-G-05. Download the catalogue PDF above for the complete datasheet, wiring diagram and dimensions.
Typical Applications
- Connecting proximity and photoelectric sensors
- Panel-to-field sensor wiring
- Drag chain and moving-axis runs
- Replacing damaged sensor leads
- Machine build and retrofits
- Spares for maintenance stores
Why Buy CS-B1-02-G-05 from Industrypapa?
CS-B1-02-G-05 — Frequently Asked Questions
Q1. What is the price of CS-B1-02-G-05 in India?
Current pricing for the CS-B1-02-G-05 is shown on this page and includes a GST invoice. For OEM, project or repeat-order quantities, send us the quantity and we will quote bulk pricing.
Q2. What are the main specifications of the CS-B1-02-G-05?
The CS-B1-02-G-05 is a connector cordset with 5 m cable. Full electrical data, wiring and dimensions are in the catalogue PDF linked above.
Q3. How many poles do I need?
Three poles suit a standard sensor with one switching output. Four poles are needed when the sensor has two outputs (NO + NC), an analogue signal, or an IO-Link connection.
Q4. When should I use PUR instead of PVC?
Choose PUR where the cable flexes continuously, as in a drag chain, or where it is exposed to oil, coolant and abrasion. PVC is fine for fixed, dry runs.
Q5. Do you provide a GST invoice?
Yes. Every order from Industrypapa is supplied with a proper GST invoice valid for input tax credit.
Q6. Do you ship CS-B1-02-G-05 outside India?
Yes. We ship to 220+ countries via DHL, ARAMEX and FedEx with full export documentation.
Q7. How quickly can the CS-B1-02-G-05 be delivered?
In-stock orders placed before 2 PM are dispatched the same day from our Noida warehouse, reaching most Indian cities in 1–4 working days.
Q8. Can I get help choosing the right part?
Yes. Tell us the application — what you are detecting, the machine and the mounting — and our engineers will confirm whether the CS-B1-02-G-05 is the right choice or suggest an alternative.
Order Datalogic CS-B1-02-G-05 Today
Genuine stock, GST invoice and same-day dispatch — with engineering support if you need to confirm the selection first.
