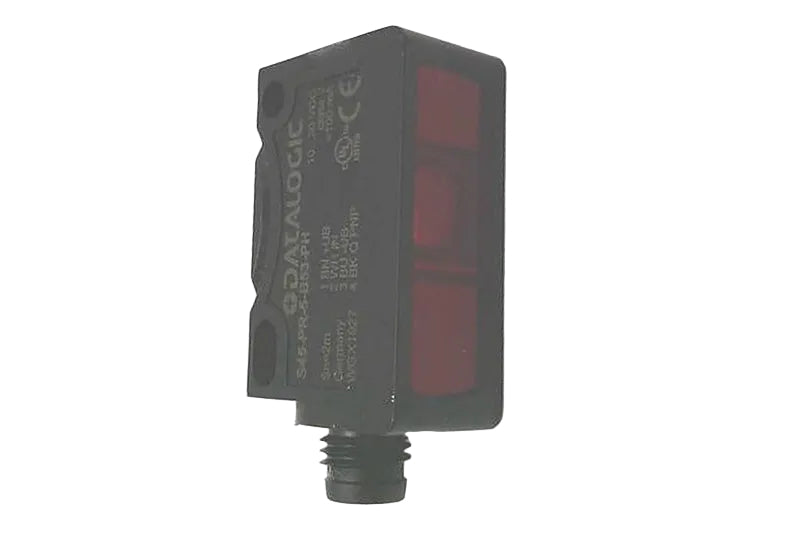

Datalogic S45-PR-5-B53-PH Photoelectric Sensor
Datalogic S45-PR-5-B53-PH Miniature Retro-Reflective Sensor — Dealer & Stockist in India
Buy genuine S45-PR-5-B53-PH from Industrypapa. S45 miniature retro-reflective sensor with red LED, teach-in, remote teach input, PNP output and M8 connector.
Product Overview
The Datalogic S45-PR-5-B53-PH is a high-performance miniature photoelectric sensor in the European-style S45 housing. It works in retro-reflective mode: the red beam is returned by a reflector and the output switches when an object interrupts it, with a range of 0.5–2 m on the R4 reference reflector.
Three teach-in modes (reflector, dynamic and reflector-object) let the sensor adapt to the application, and the IN wire allows teaching from the PLC. It has a PNP output with selectable NO/NC, a 4-pin M8 connector, switching up to 1000 Hz and IP67 / IP69K protection.
Key Features
- Retro-reflective sensing, 0.5–2 m with R4 reflector
- Red LED, 632 nm
- Three teach-in modes: RTI, DTI, ROTI
- Remote teach via IN control input
- PNP output, NO/NC selectable
- M8 4-pin connector, IP67 / IP69K
Technical Specifications
| Parameter | Value |
|---|---|
| Model | S45-PR-5-B53-PH |
| Series | S45 miniature (B53) |
| Sensing function | Retro-reflective with teach-in |
| Operating distance | 0.5–2 m (R4 reflector) |
| Emission | Red LED, 632 nm |
| Power supply | 10–30 Vdc |
| No-load current | ≤ 30 mA |
| Output | PNP, NO/NC selectable |
| Output current | ≤ 100 mA |
| Switching frequency | ≤ 1000 Hz |
| Setting | Teach-in button and remote IN input |
| Indicators | Yellow output LED, green power LED |
| Connection | M8 4-pin connector |
| Protection | IP67 / IP69K |
| Operating temperature | -20 to 60 °C |
| Weight | 10 g |
Values from the manufacturer datasheet. Please check the catalogue PDF for full details before design-in.
Applications
- Bottle and container detection on filling lines
- Object detection on compact packaging machines
- Conveyor and accumulation control
- Machines where space for the sensor is limited
S45-PR-5-B53-PH Dealer in India
Industrypapa supplies the Datalogic S45-PR-5-B53-PH across India from stock in Noida, with GST invoice and fast dispatch to all major industrial cities.
Frequently Asked Questions
Q1. Does the S45-PR-5-B53-PH need a reflector?
Yes. It is a retro-reflective sensor; the range is specified with the Datalogic R4 reflector.
Q2. Can it be taught remotely?
Yes. Connecting the IN wire to +V starts teach-in, so it can be set from a PLC.
Q3. What connector does it use?
A 4-pin M8 connector with PNP output.
