Datalogic S5-5-C60-32 Photoelectric Sensor
Datalogic S5-5-C60-32 M18 Diffuse Photoelectric Sensor — Dealer & Stockist in India
Buy genuine S5-5-C60-32 from Industrypapa. M18 plastic tubular diffuse sensor with infrared LED, up to 60 cm range, selectable PNP/NPN output and M12 4-pin connector.
Product Overview

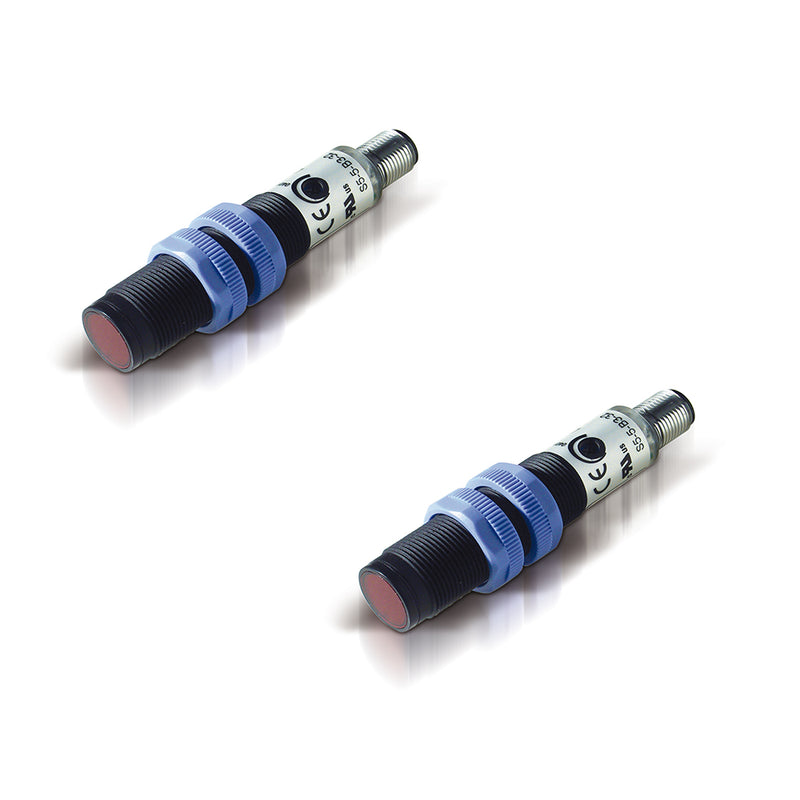

The Datalogic S5-5-C60-32 is an M18 tubular photoelectric sensor from the S5 series that works in diffuse proximity mode: it sends an infrared beam and switches when an object reflects the light back, so no separate reflector or receiver is needed. It detects objects up to 60 cm away, and a sensitivity trimmer lets you tune the switching point to the target and background.
The output type (PNP or NPN) and Light/Dark mode are selected by wiring, so one part number covers most panels and saves stocking several variants. The ABS housing, axial optics and IP67 rating suit conveyors, packaging lines and general machine building.
Key Features
- Diffuse proximity sensing up to 60 cm
- Infrared LED emission, axial optics
- PNP or NPN output and Light/Dark selectable by connection
- Sensitivity trimmer with 270° mechanical stop
- Output LED and green stability LED
- M12 4-pin connector, IP67
Technical Specifications
| Parameter | Value |
|---|---|
| Model | S5-5-C60-32 |
| Series | S5 (M18 tubular) |
| Sensing function | Diffuse proximity |
| Sensing distance | Up to 60 cm |
| Emission | Infrared LED |
| Power supply | 10–30 Vdc |
| Current consumption | 30 mA max (without load) |
| Output | PNP or NPN, selectable; Light/Dark selectable |
| Output current | 150 mA max, short-circuit protected |
| Response time | 1 ms max |
| Switching frequency | 500 Hz max |
| Adjustment | Sensitivity trimmer |
| Housing | ABS, M18 tubular |
| Connection | M12 4-pin connector |
| Protection | IP67 |
| Operating temperature | -25 to 55 °C |
Values from the manufacturer datasheet. Please check the catalogue PDF for full details before design-in.
Applications
- Box and carton detection on conveyors
- Part presence on assembly and packaging machines
- Counting objects on material handling lines
- Level and position checks where no reflector can be mounted
S5-5-C60-32 Dealer in India
Industrypapa supplies the Datalogic S5-5-C60-32 across India from stock in Noida, with GST invoice and fast dispatch to all major industrial cities.
Frequently Asked Questions
Q1. What is the sensing range of the S5-5-C60-32?
It detects objects in diffuse mode up to 60 cm; the actual distance depends on the colour and surface of the target.
Q2. Is the S5-5-C60-32 PNP or NPN?
Both: PNP or NPN output and Light/Dark operation are selected by how the sensor is wired.
Q3. What connector does it use?
An M12 4-pin connector. A matching M12 cable is needed for installation.
