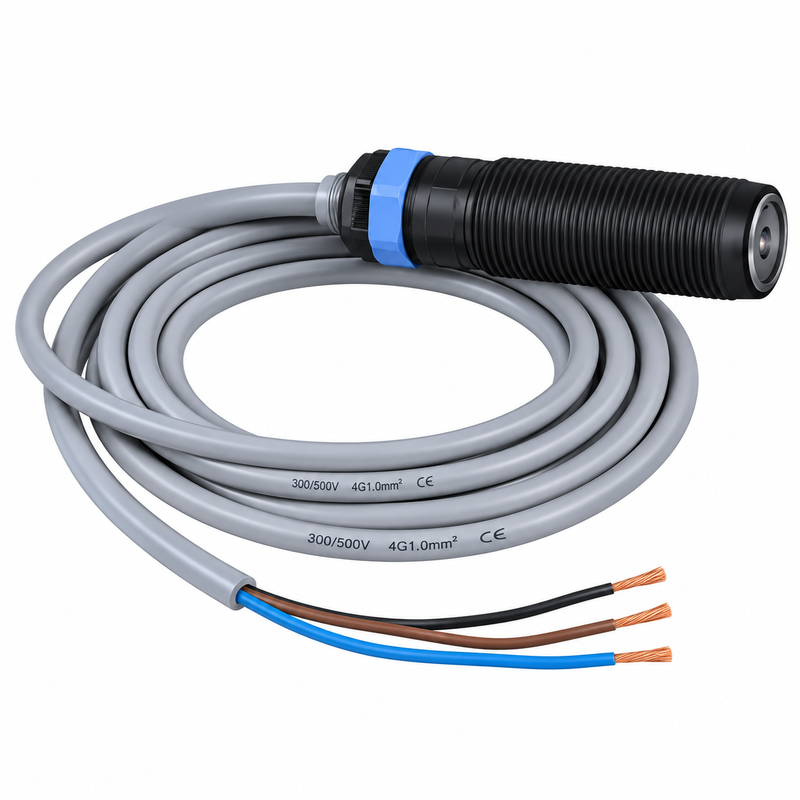

Datalogic S5N-PA-2-F01-NN Photoelectric Sensor
Datalogic S5N-PA-2-F01-NN M18 Through-Beam Receiver — Dealer & Stockist in India
Buy genuine S5N-PA-2-F01-NN from Industrypapa. S5N M18 plastic through-beam receiver, up to 25 m with its emitter, NPN NO+NC output and 2 m cable.
Product Overview
The Datalogic S5N-PA-2-F01-NN is the receiver half of an S5N through-beam pair. It sits opposite a matching S5N emitter (G00 version) and switches when an object breaks the infrared beam between them. Through-beam is the most reliable sensing mode for long distances, dusty areas and dark or shiny objects.
This version has a PBT plastic M18 housing with axial optics, a sensitivity trimmer, NPN NO+NC outputs and a 2 m cable. The S5N family is Datalogic's "one for all" M18 range, built to IP67 with a 36-month warranty.
Key Features
- Through-beam receiver, range up to 25 m with S5N emitter
- NPN output, NO and NC both available
- Sensitivity trimmer with mechanical stop
- Yellow output LED and green stability LED
- PBT housing, PMMA lens, axial optics
- 2 m cable, IP67
Technical Specifications
| Parameter | Value |
|---|---|
| Model | S5N-PA-2-F01-NN |
| Series | S5N plastic M18 |
| Sensing function | Through-beam receiver (use with S5N G00 emitter) |
| Operating distance | Up to 25 m |
| Emitter light | Infrared LED, 880 nm |
| Power supply | 10–30 Vdc |
| Current consumption | 35 mA max (without load) |
| Output | NPN, NO + NC, short-circuit protected |
| Output current | 100 mA max |
| Response time | 2 ms |
| Switching frequency | 250 Hz |
| Housing | PBT, PMMA lens |
| Connection | 2 m cable, Ø 4 mm |
| Protection | IP67 |
| Operating temperature | -25 to 55 °C |
Values from the manufacturer datasheet. Please check the catalogue PDF for full details before design-in.
Applications
- Long-range detection across conveyors and doorways
- Vehicle and pallet detection in warehouses
- Detection of dark, matt or irregular objects
- Dusty or dirty environments where diffuse sensors struggle
S5N-PA-2-F01-NN Dealer in India
Industrypapa supplies the Datalogic S5N-PA-2-F01-NN across India from stock in Noida, with GST invoice and fast dispatch to all major industrial cities.
Frequently Asked Questions
Q1. Does the S5N-PA-2-F01-NN work alone?
No. It is a receiver and needs an S5N through-beam emitter (G00 version) mounted opposite it.
Q2. What is the range?
Up to 25 m between emitter and receiver.
Q3. Is it NPN or PNP?
NPN, with both NO and NC outputs, on a 2 m cable.
