Datalogic S7-6-E-P Fiber Optic Amplifier
Datalogic S7-6-E-P Fiber Optic Amplifier — Dealer & Stockist in India
Buy genuine S7-6-E-P from Industrypapa. DIN-rail fiber optic amplifier with red LED, EASY TOUCH setting, PNP output and M8 connector, for small objects in tight spaces.
Product Overview

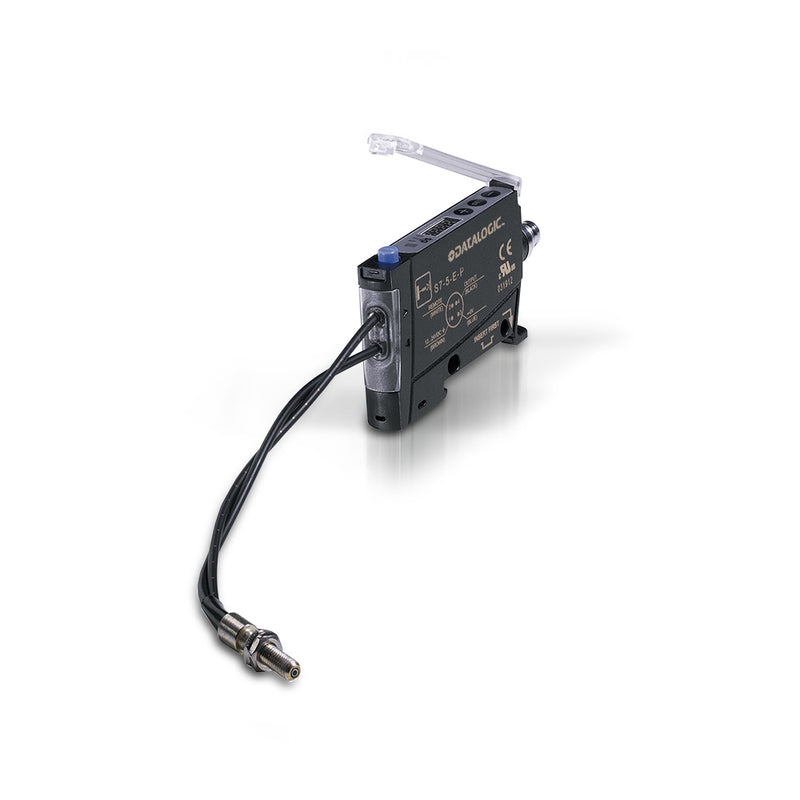

The Datalogic S7-6-E-P is a fiber optic amplifier from the S7 series. The amplifier stays in the cabinet or on a DIN rail while a plastic fiber carries the light to the detection point, so very small parts can be sensed in places where a normal sensor does not fit.
Setup is done with EASY TOUCH: one long press on the SET button teaches the sensor, with a fine-detection mode for difficult targets. A REMOTE input allows setting from the PLC and can lock the keypad. The model has no display, a 500 µs response time, PNP output and a 4-pole M8 connector.
Key Features
- Red LED emission, 670 nm
- EASY TOUCH one-button setting, standard or fine detection
- REMOTE input for external setting and keypad lock
- Optional 20 ms output delay function
- DIN rail or screw mounting
- PNP output, M8 4-pole connector
Technical Specifications
| Parameter | Value |
|---|---|
| Model | S7-6-E-P |
| Series | S7 fiber optic amplifier |
| Emission | Red LED, 670 nm |
| Power supply | 12–24 Vdc ±10%, reverse polarity protected |
| Current consumption | 40 mA (without load) |
| Output | PNP |
| Output current | 100 mA max at 25 °C |
| Response time | 500 µs max |
| Setting | EASY TOUCH SET button / REMOTE input |
| Indicators | Yellow output LED, green/red ready/error LED |
| Housing | ABS |
| Mounting | DIN rail or M3 screws |
| Connection | M8 4-pole connector |
| Protection | IP65 |
| Operating temperature | -10 to 55 °C |
| Fibers | OF-xx-ST plastic fibers (ordered separately) |
Values from the manufacturer datasheet. Please check the catalogue PDF for full details before design-in.
Applications
- Detecting small electronic components and pins
- Thread, wire and label edge detection
- Part presence inside fixtures and tooling
- Sensing in hot or cramped areas using the remote fiber head
S7-6-E-P Dealer in India
Industrypapa supplies the Datalogic S7-6-E-P across India from stock in Noida, with GST invoice and fast dispatch to all major industrial cities.
Frequently Asked Questions
Q1. Does the S7-6-E-P include a fiber?
No. The amplifier is used with Datalogic OF series plastic fibers, selected for the required spot size and range.
Q2. How is the S7-6-E-P set up?
Press and hold the SET button (EASY TOUCH) with the target in position, or trigger setting through the REMOTE wire.
Q3. What output does it have?
A PNP switching output, 100 mA max, on an M8 4-pole connector.
