Datalogic TLU-111 Contrast Sensor
Datalogic TLµ-111 Contrast (Registration Mark) Sensor — Dealer & Stockist in India
Buy genuine TLµ-111 from Industrypapa. TLµ midi contrast sensor, 9 mm operating distance, vertical spot, teach-in, 3 m cable, for registration mark detection.
Product Overview

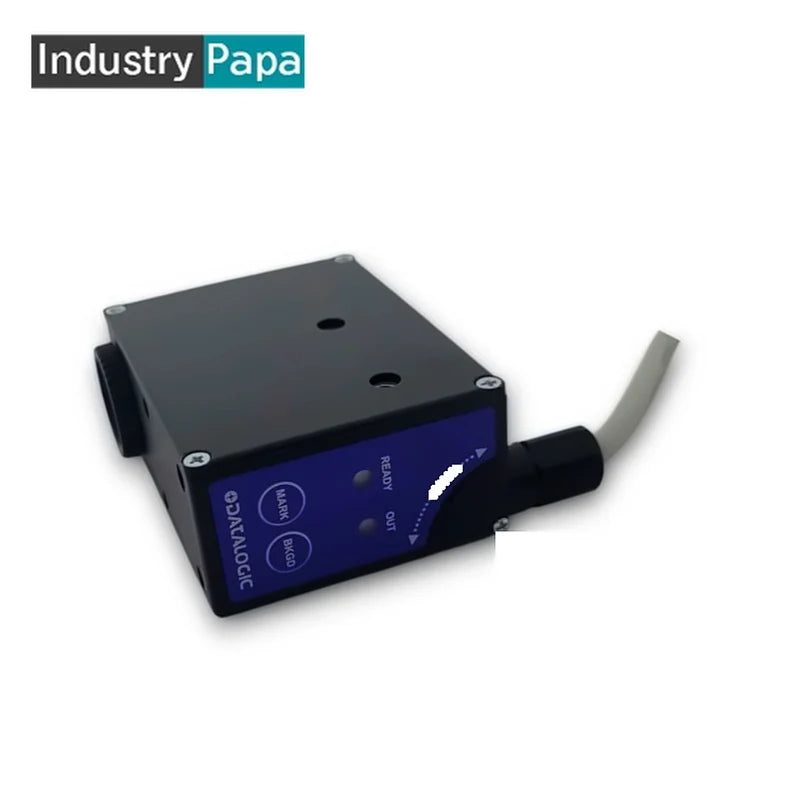

The Datalogic TLµ-111 is a midi contrast sensor for reading registration marks on film, labels, cartons and printed webs. It compares the reflected light from the mark and the background and switches at very high speed, so a packaging machine can cut, seal or print exactly on the mark.
It works at 9 mm from the target with a small vertical spot, and is taught with the MARK and BKGD buttons or remotely by wire. The rugged zinc-alloy (ZAMA) housing is IP67, and the model has a 3 m shielded cable. The output type is selected inside the sensor.
Key Features
- 9 mm operating distance, ±3 mm depth of field
- Small vertical light spot for narrow marks
- Red/green LED emission for strong mark contrast
- Teach-in with MARK and BKGD buttons or remote wire
- Switching frequency up to 10 kHz
- Zinc-alloy housing, IP67, 3 m shielded cable
Technical Specifications
| Parameter | Value |
|---|---|
| Model | TLµ-111 |
| Series | TLµ midi contrast sensors |
| Operating distance | 9 mm |
| Depth of field | ±3 mm |
| Spot | Vertical, approx. 1.5 × 5 mm |
| Emission | Red / green LED |
| Power supply | 10–30 Vdc, reverse polarity protected |
| Current consumption | 80 mA max (without load) |
| Output | PNP (output type selectable by internal switch) |
| Output current | 200 mA max, short-circuit protected |
| Switching frequency | 10 kHz max |
| Setting | Teach-in (MARK / BKGD buttons, remote input) |
| Housing | ZAMA (zinc alloy) |
| Connection | 3 m shielded cable |
| Protection | IP67 |
| Operating temperature | -10 to 55 °C |
Values from the manufacturer datasheet. Please check the catalogue PDF for full details before design-in.
Applications
- Registration mark detection on flow-wrap and pouch machines
- Eye-mark reading for cut-to-register on printing presses
- Label and carton print mark detection
- Colour/contrast difference detection on moving webs
TLµ-111 Dealer in India
Industrypapa supplies the Datalogic TLµ-111 across India from stock in Noida, with GST invoice and fast dispatch to all major industrial cities.
Frequently Asked Questions
Q1. What is the TLµ-111 used for?
Detecting printed registration marks and contrast differences at high speed on packaging and printing machines.
Q2. How is it set up?
Teach the mark and the background with the MARK and BKGD buttons, or through the remote teach wires.
Q3. What is the difference between TLµ-111 and TLµ-115?
Both are PNP models with the same optics; TLµ-111 has a 3 m cable, TLµ-115 has an M12 connector.
