FMK6/BN-3H Micro Detectors Metal Face Proximity Sensor
Micro Detectors FMK6/BN-3H M18 Full-Metal Inductive Sensor — Dealer & Stockist in India
Buy genuine FMK6/BN-3H from Industrypapa. M18 full-metal AISI 316L inductive sensor, 5 mm flush sensing, NPN NO+NC output, M12 connector, IP69K.
Product Overview

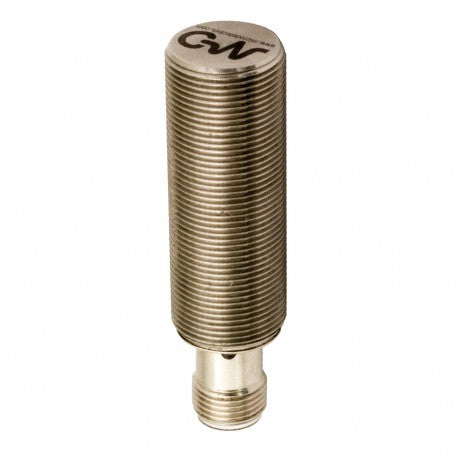

The Micro Detectors FMK6/BN-3H is an M18 inductive proximity sensor with a full-metal AISI 316L stainless steel housing and sensing face. Without a plastic cap, it withstands impacts, cleaning chemicals and high-pressure washdown much better than standard inductive sensors.
It detects metal targets up to 5 mm in a shielded (flush-mount) design, has NPN NO+NC outputs and an M12 connector. Ratings of IP67, IP68 and IP69K, 80 bar pressure resistance and full short-circuit and reverse-polarity protection make it suited to food, beverage and heavy-duty applications.
Key Features
- Full-metal AISI 316L housing and sensing face
- 5 mm nominal sensing distance, shielded
- NPN output, NO + NC
- IP67 / IP68 / IP69K, 80 bar pressure resistant
- Short-circuit and reverse-polarity protection
- M12 connector, yellow output LED
Technical Specifications
| Parameter | Value |
|---|---|
| Model | FMK6/BN-3H |
| Brand | Micro Detectors |
| Type | Inductive proximity sensor, M18 full metal |
| Sensing distance | 5 mm nominal (0–4 mm assured) |
| Mounting | Shielded |
| Housing / face | AISI 316L stainless steel |
| Power supply | 10–30 Vdc |
| No-load current | ≤ 10 mA |
| Output | NPN, NO + NC |
| Output current | 200 mA max |
| Switching frequency | 100 Hz |
| Connection | M12 connector |
| Protection | IP67, IP68, IP69K |
| Operating temperature | -25 to 70 °C |
Values from the manufacturer datasheet. Please check the catalogue PDF for full details before design-in.
Applications
- Food and beverage machines with washdown
- Metal part detection where impacts are common
- Machine tools and presses
- Outdoor and wet process areas
FMK6/BN-3H Dealer in India
Industrypapa supplies the Micro Detectors FMK6/BN-3H across India from stock in Noida, with GST invoice and fast dispatch to all major industrial cities.
Frequently Asked Questions
Q1. Why choose a full-metal inductive sensor?
The stainless steel face resists impacts, abrasion and cleaning chemicals far better than a plastic sensing face.
Q2. What output does the FMK6/BN-3H have?
NPN with both NO and NC outputs, on an M12 connector.
Q3. What is the sensing distance?
5 mm nominal for steel targets, shielded mounting.
