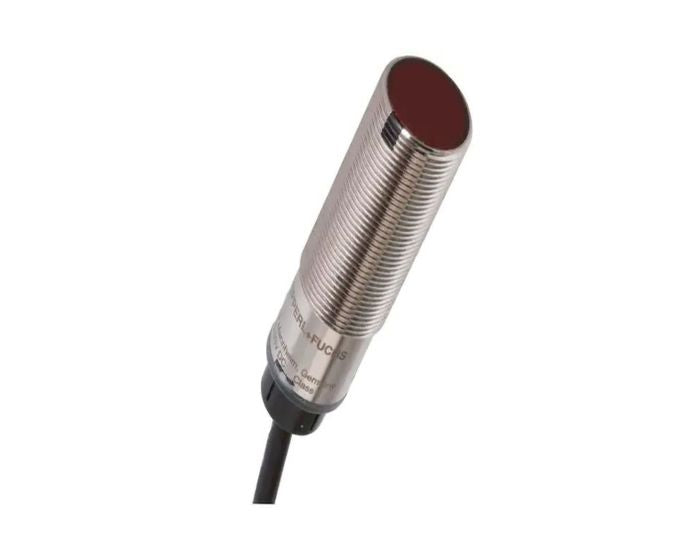

OBD200-18GM60-E4-IR-1C

Description:  Diffuse mode sensor

• Strong metallic housing in cylindrical shape M18 x 1
• Operating distance adjustable
• Not sensitive to ambient light
• Degree of protection IP67
• High operating distance
• Detection range  0 ... 200 m
• Reference target        standard white 200 mm X 200 mm
• Light source               IRED
• Light type                  infrared
• Diameter of the light spot      approx. 22 mm at 200 mm
• Opening angle                approx. 2.6 °
• Optical face                frontal
• Ambient light limit        EN 60947-5-2 10000 Lux
• Hysteresis               H < 15 %
