S3N-PH-5-B01-P Datalogic Photoelectric Sensor

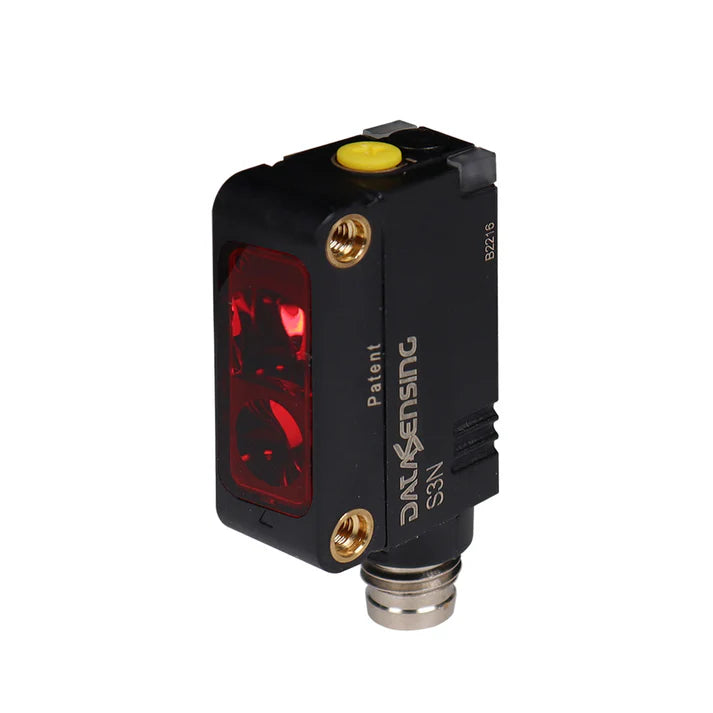

Datalogic S3N-PH-5-B01-P Laser Polarized Retro-Reflective Sensor
Miniature red-laser polarized retro-reflective sensor — up to 12 m on R7 reflector, PNP Light/Dark, M8 connector, 11 × 31 × 19 mm.
Product Overview
The Datalogic S3N-PH-5-B01-P (order code 95B010462) is a laser polarized retro-reflective sensor from the S3N series, now produced under the Datasensing brand. Miniature red-laser polarized retro-reflective sensor — up to 12 m on R7 reflector, PNP Light/Dark, M8 connector, 11 × 31 × 19 mm.
S3N-PH-5-B01-P Technical Specifications
| Brand | Datalogic (Datasensing) |
|---|---|
| Part Number / MPN | S3N-PH-5-B01-P |
| Order Code | 95B010462 |
| Sensor Type | Miniature photoelectric sensor (S3N series) |
| Function | Polarized retro-reflective |
| Light Emission | Red laser, 650 nm, Class 1 |
| Sensing Distance | 0.1–12 m (on R7 reflector) |
| Adjustment | 1-turn trimmer + L/D trimmer |
| Output | PNP, Light/Dark selectable |
| Switching Frequency | 2 kHz |
| Supply Voltage | 10–30 V DC, ≤ 35 mA |
| Connection | M8 4-pin plug |
| Housing | Glass-fibre reinforced plastic, 11 × 31 × 19 mm |
| Protection | IP67 |
| Operating Temperature | −25 °C to +55 °C |
| Approvals | CE, cULus, CDRH |
Specifications from the Datasensing product data for S3N-PH-5-B01-P. Please check the datasheet for wiring and response curves.
Typical Applications
- Long-range object detection across conveyors
- Detection of small or fast objects with a precise laser beam
- Pallet and carton detection
- Door and gate monitoring
Why Buy S3N-PH-5-B01-P from Industrypapa?
S3N-PH-5-B01-P Supplier in India
Industrypapa supplies the Datalogic S3N-PH-5-B01-P across India, including:
Frequently Asked Questions
Q1. What is the price of Datalogic S3N-PH-5-B01-P in India?
The S3N-PH-5-B01-P is listed at ₹11,250 on Industrypapa. For bulk quantities, contact us for a quote.
Q2. Is S3N-PH-5-B01-P a laser sensor?
Yes — it uses a Class 1 red laser (650 nm), which makes alignment easy and gives a small, precise spot.
Q3. What is the range of S3N-PH-5-B01-P?
Up to 12 m on an R7 reflector, with a 0.1 m blind zone.
Q4. What is the difference between S3N-PH-5-B01-P and S3N-PH-5-M01-P?
B01 is a polarized retro-reflective sensor (needs a reflector, up to 12 m). M01 is a background-suppression sensor (no reflector, up to 600 mm).
Q5. Is S3N-PH-5-B01-P the same product after the Datalogic → Datasensing rebrand?
Yes. Datalogic's sensor business now operates as Datasensing; the part number S3N-PH-5-B01-P (order code 95B010462) and specifications are unchanged.
