S3N-PH-5-M01-P Datalogic Photoelectric Sensor

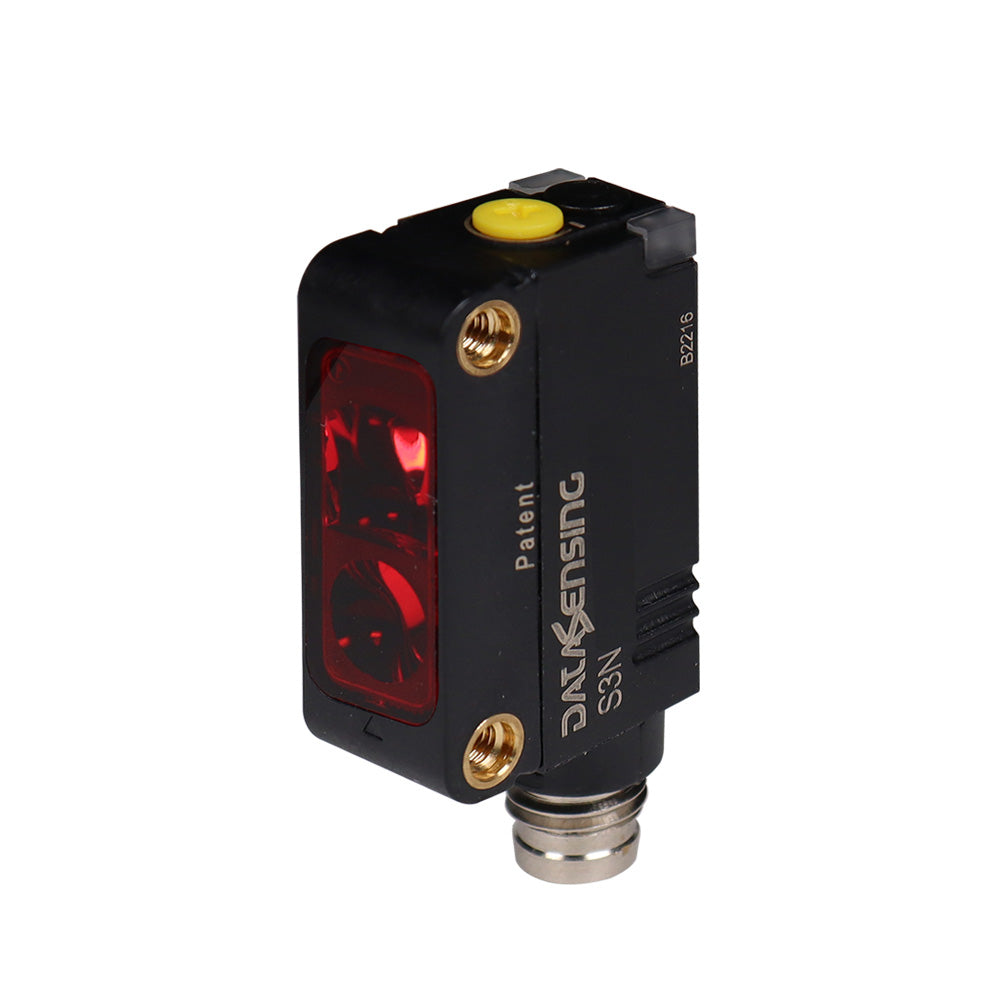

Datalogic S3N-PH-5-M01-P Laser Background Suppression Sensor
Miniature red-laser background suppression sensor — up to 600 mm, 9-turn trimmer, PNP Light/Dark, M8 connector, 11 × 31 × 19 mm.
Product Overview
The Datalogic S3N-PH-5-M01-P (order code 95B010502) is a laser background suppression sensor from the S3N series, now produced under the Datasensing brand. Miniature red-laser background suppression sensor — up to 600 mm, 9-turn trimmer, PNP Light/Dark, M8 connector, 11 × 31 × 19 mm.
S3N-PH-5-M01-P Technical Specifications
| Brand | Datalogic (Datasensing) |
|---|---|
| Part Number / MPN | S3N-PH-5-M01-P |
| Order Code | 95B010502 |
| Sensor Type | Miniature photoelectric sensor (S3N series) |
| Function | Background suppression |
| Light Emission | Red laser, 650 nm, Class 1 |
| Sensing Distance | 0–600 mm (90% white target) |
| Adjustment | 9-turn trimmer + L/D trimmer |
| Output | PNP, Light/Dark selectable |
| Switching Frequency | 1.5 kHz (response 333 µs) |
| Supply Voltage | 10–30 V DC, ≤ 35 mA |
| Connection | M8 4-pin plug |
| Housing | Glass-fibre reinforced plastic, 11 × 31 × 19 mm |
| Protection | IP67 |
| Operating Temperature | −25 °C to +55 °C |
| Approvals | CE, cULus, CDRH |
Specifications from the Datasensing product data for S3N-PH-5-M01-P. Please check the datasheet for wiring and response curves.
Typical Applications
- Detecting objects regardless of background colour
- Small-part detection with a fine laser spot
- Height and presence checks on conveyors
- Detection of dark or shiny objects close to a background
Why Buy S3N-PH-5-M01-P from Industrypapa?
S3N-PH-5-M01-P Supplier in India
Industrypapa supplies the Datalogic S3N-PH-5-M01-P across India, including:
Frequently Asked Questions
Q1. What is the price of Datalogic S3N-PH-5-M01-P in India?
The S3N-PH-5-M01-P is listed at ₹7,200 on Industrypapa. For bulk quantities, contact us for a quote.
Q2. What does background suppression mean on S3N-PH-5-M01-P?
The sensor only switches for objects inside the set distance and ignores anything behind it, even bright backgrounds.
Q3. What is the range of S3N-PH-5-M01-P?
Up to 600 mm on a 90% white target, adjustable with a 9-turn trimmer.
Q4. Does S3N-PH-5-M01-P need a reflector?
No. It is a diffuse background-suppression sensor; no reflector is needed.
Q5. Is S3N-PH-5-M01-P the same product after the Datalogic → Datasensing rebrand?
Yes. Datalogic's sensor business now operates as Datasensing; the part number S3N-PH-5-M01-P (order code 95B010502) and specifications are unchanged.
