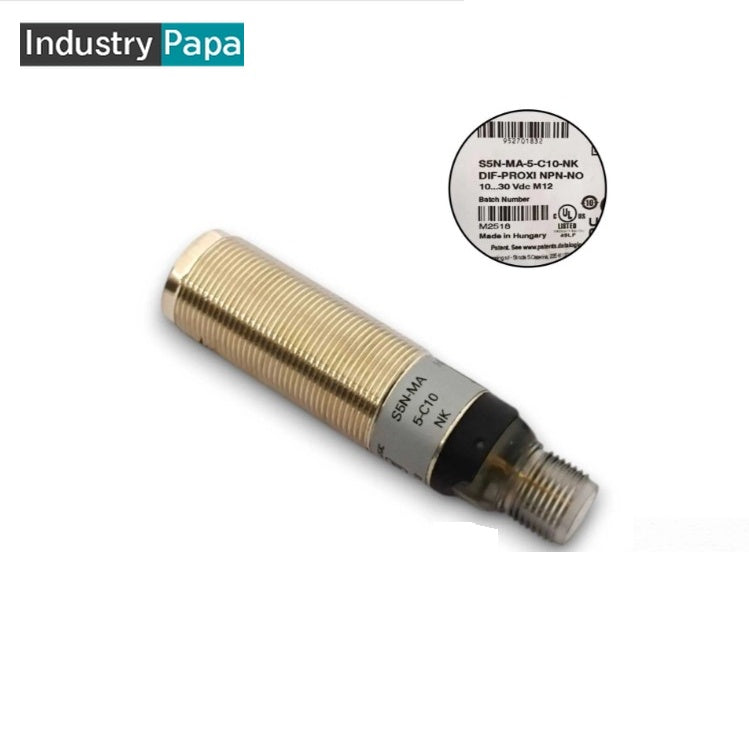

S5N-MA-5-C10-NK Datalogic Photoelectric Sensor
Datalogic S5N-MA-5-C10-NK M18 Diffuse Sensor | NPN L/D input, M12 β Authorized Distributor, Dealer, Supplier & Stockist in India
Buy genuine S5N-MA-5-C10-NK M18 tubular Infrared LED short-range diffuse, NPN with Light/Dark input, M12 connector, metal housing. Authorized distributor for Datalogic.
Product Overview
The Datalogic S5N-MA-5-C10-NK is a compact M18 photoelectric diffuse-reflective sensor with Infrared LED, NPN output with Light/Dark input, 10-30 VDC supply, IP67 and M12 4-pin connector.
S5N-MA-5-C10-NK Key Features
Photoelectric Sensor Tubular M18 Infrared LED emission no adjust dif-prox no trimmer npn-no M12 metal housing axial optics L/D input
Extended range of standard "one for all" photoelectric tubular M18 sensors.
- All optic functions
- Improved EMI immunity
- Improved ambient light immunity
- Improved laser safety level
- M18 flat plastic with universal mounting
- Short plastic housing models
- Available in M18 metal housing
- Stainless steel housing models
- Axial or radial optics, cable or connector
- Standard 4-wire NO-NC NPN or PNP output
- M12 pigtail models available
- IO-Link connectivity V1.1 with double channel
Key Specifications
| Brand | Datalogic (Datasensing) |
|---|---|
| Part Number / MPN | S5N-MA-5-C10-NK |
| Sensing Function | Diffuse proximity (short range) |
| Product Type | Photoelectric Diffuse Sensor (S5N series) |
| Emitter | Infrared LED, 880 nm |
| Sensing Distance | 0β100 mm |
| Output | NPN, with Light/Dark control input |
| Switching Frequency | 500 Hz |
| Supply Voltage | 10-30 VDC |
| Connection | M12 connector, 4-pin |
| Housing | M18 threaded tubular, metal (nickel-plated brass) |
| Protection Rating | IP67 |
| Operating Temperature | -25 to +55 C |
| Country of Origin | Hungary |
| Warranty | 24 months manufacturer warranty |
Applications
- Object presence detection on packaging lines
- Presence control on conveyors
- NPN PLC input applications
- Cut-to-mark control on bag-making
- Quality control on manufacturing
Why Buy S5N-MA-5-C10-NK from Industrypapa?
S5N-MA-5-C10-NK Dealer, Supplier, Stockist in India
Industrypapa is the authorized dealer, supplier, stockist of Datalogic S5N-MA-5-C10-NK across India:
Frequently Asked Questions
Q1. Price?
Contact Industrypapa.
Q2. Authorized?
Yes.
Q3. Output?
NPN with Light/Dark control input. 10-30 VDC.
Q4. Connector?
M12 4-pin.
Q5. GST?
Yes.
Q6. Ship abroad?
Yes.
Q7. Delivery?
Same-day from Noida.
Q8. After rebrand?
Yes.
Need help selecting the right sensor?
Talk to our automation engineers for the correct Datalogic part.
