S5N-PA-5-C21-PP Datalogic Photoelectric Sensor
Datalogic S5N-PA-5-C21-PP Photoelectric Sensor — Authorized Dealer & Stockist India
Buy genuine S5N-PA-5-C21-PP photoelectric sensor from Industrypapa — India's only authorized stockist and dealer for Datalogic (Datasensing) industrial sensors. PNP NO+NC output, 0–400 mm sensing range, M12 connector.
Product Overview

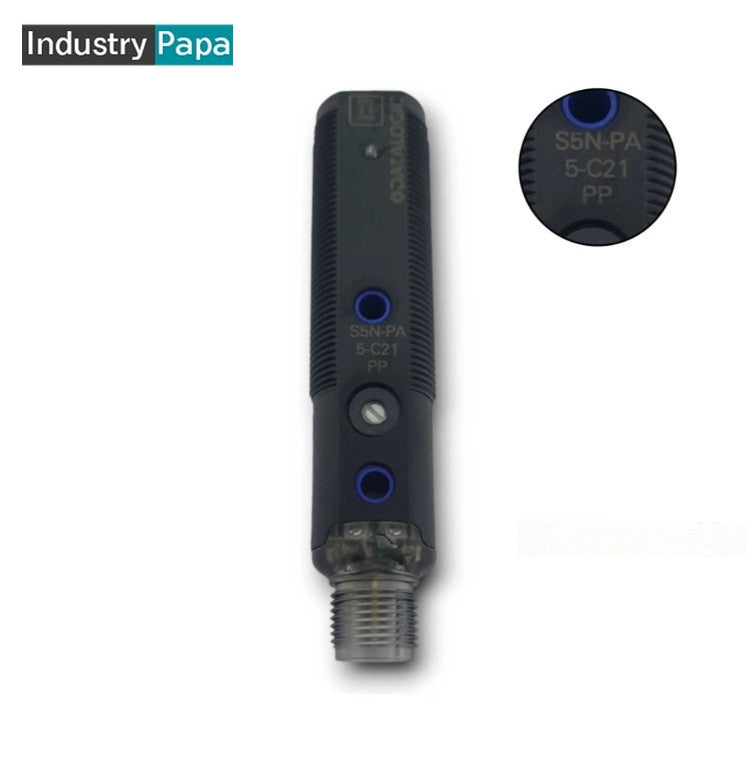

The Datalogic S5N-PA-5-C21-PP is a M18 tubular photoelectric sensor from the S5N series with a 0–400 mm sensing range, PNP NO+NC output, and an M12 connector.
S5N-PA-5-C21-PP (952002181) Key Features
Photoelectric Sensor Tubular M18 Infrared LED emission adjust dif-prox pnp no-nc M12 plastic housing axial optics

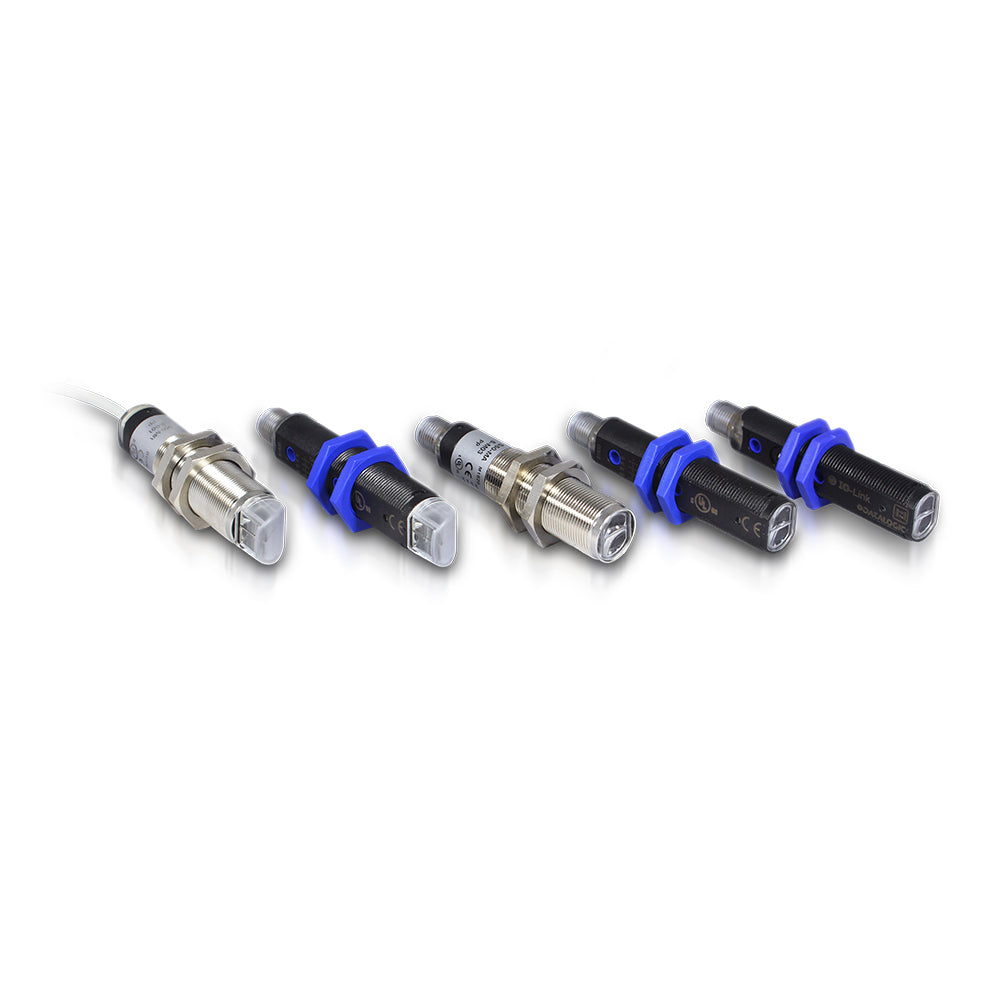

Extended range of standard "one for all" photoelectric tubular M18 sensors.
- All optic functions
- Improved EMI immunity
- Improved ambient light immunity
- Improved laser safety level
- M18 flat plastic with universal mounting
- Short plastic housing models
- Available in M18 metal housing
- Stainless steel housing models
- Axial or radial optics, cable or connector
- Standard 4-wire NO-NC NPN or PNP output
- M12 pigtail models available
- IO-Link connectivity V1.1 with double channel
Technical Specifications
| Parameter | Value |
|---|---|
| Model | S5N-PA-5-C21-PP |
| Light Emission | Infrared LED, 880 nm |
| Sensing Function | Diffuse proximity (medium range) |
| Series | S5N (Datasensing) |
| Sensing Range | 0–400 mm |
| Output Type | PNP, NO + NC |
| Connector | M12 connector, 4-pin |
| Housing | M18 threaded tubular, plastic (PBT) |
| Protection | IP67 |
| Supply Voltage | 10-30 V DC |
| Brand | Datalogic (Datasensing) |
S5N-PA-5-C21-PP Dealer in India
Industrypapa is the authorized dealer of Datalogic S5N-PA-5-C21-PP across India.
Frequently Asked Questions
Q1. What is the price of S5N-PA-5-C21-PP?
Contact Industrypapa for the latest price with GST invoice.
Q2. What output type does S5N-PA-5-C21-PP have?
It has PNP NO+NC output with M12 connector.
