TL46-W-815 Datalogic Contrast Sensor

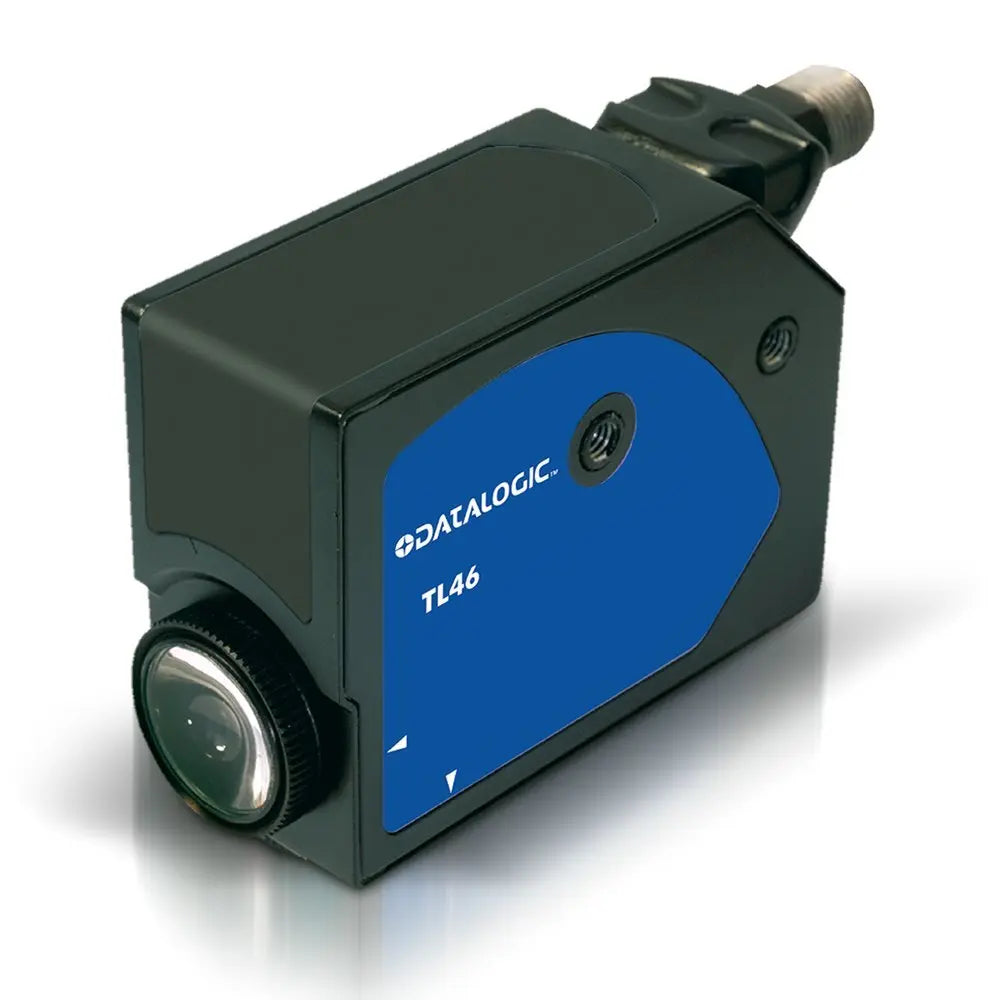

Datalogic TL46-W-815 RGB Contrast Sensor
High-performance TL46 contrast sensor with RGB LED emission, 12 mm sensing distance, 15 kHz, NPN/PNP plus 0–5 V analog output on M12.
Product Overview
The Datalogic TL46-W-815 (order code 954601000) is a RGB contrast sensor from the TL46 series, now produced under the Datasensing brand. High-performance TL46 contrast sensor with RGB LED emission, 12 mm sensing distance, 15 kHz, NPN/PNP plus 0–5 V analog output on M12.
TL46-W-815 Technical Specifications
| Brand | Datalogic (Datasensing) |
|---|---|
| Part Number / MPN | TL46-W-815 |
| Order Code | 954601000 |
| Sensor Type | Contrast / color mark sensor (TL46 series) |
| Light Emission | RGB LED |
| Sensing Distance | 12 mm |
| Light Spot | 1.5 × 5 mm, vertical |
| Adjustment | Teach-in |
| Output | NPN/PNP, Dark/Light selectable + 0–5 V analog |
| Switching Frequency | 15 kHz (response 33 µs) |
| Supply Voltage | 10–30 V DC, ≤ 50 mA |
| Connection | M12 plug |
| Housing | Aluminium / PMMA, 32 × 60 × 82 mm |
| Protection | IP67 |
| Operating Temperature | −10 °C to +55 °C |
| Approvals | CE, cULus |
Specifications from the Datasensing product data for TL46-W-815. Please check the datasheet for wiring and response curves.
Typical Applications
- High-speed registration mark detection
- Cut-to-mark on packaging and bag-making machines
- Colour contrast checking on labels and cartons
- Print verification on converting lines
Why Buy TL46-W-815 from Industrypapa?
TL46-W-815 Supplier in India
Industrypapa supplies the Datalogic TL46-W-815 across India, including:
Frequently Asked Questions
Q1. What is the price of Datalogic TL46-W-815 in India?
The TL46-W-815 is listed at ₹9,500 on Industrypapa. For bulk quantities, contact us for a quote.
Q2. What is the sensing distance of TL46-W-815?
Nominal sensing distance is 12 mm with a 1.5 × 5 mm vertical spot.
Q3. Does TL46-W-815 have an analog output?
Yes — in addition to the NPN/PNP switching output it provides a 0–5 V analog output.
Q4. What is the difference between TL46-W-815 and TL50-W-815?
Both use RGB LED emission. TL46-W-815 has a 12 mm sensing distance, aluminium housing and analog output; TL50-W-815 has 9 mm and a plastic housing.
Q5. Is TL46-W-815 the same product after the Datalogic → Datasensing rebrand?
Yes. Datalogic's sensor business now operates as Datasensing; the part number TL46-W-815 (order code 954601000) and specifications are unchanged.
