TL50-W-815 Datalogic Contrast Sensor

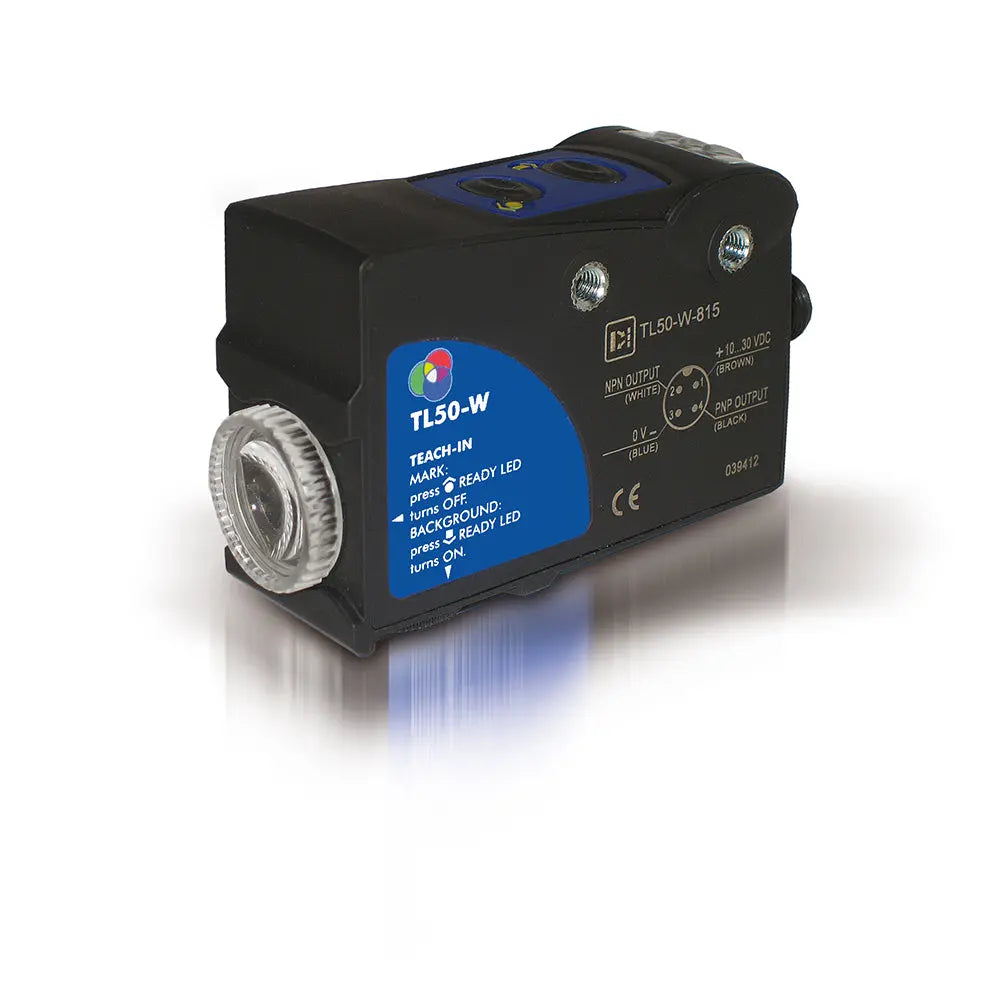

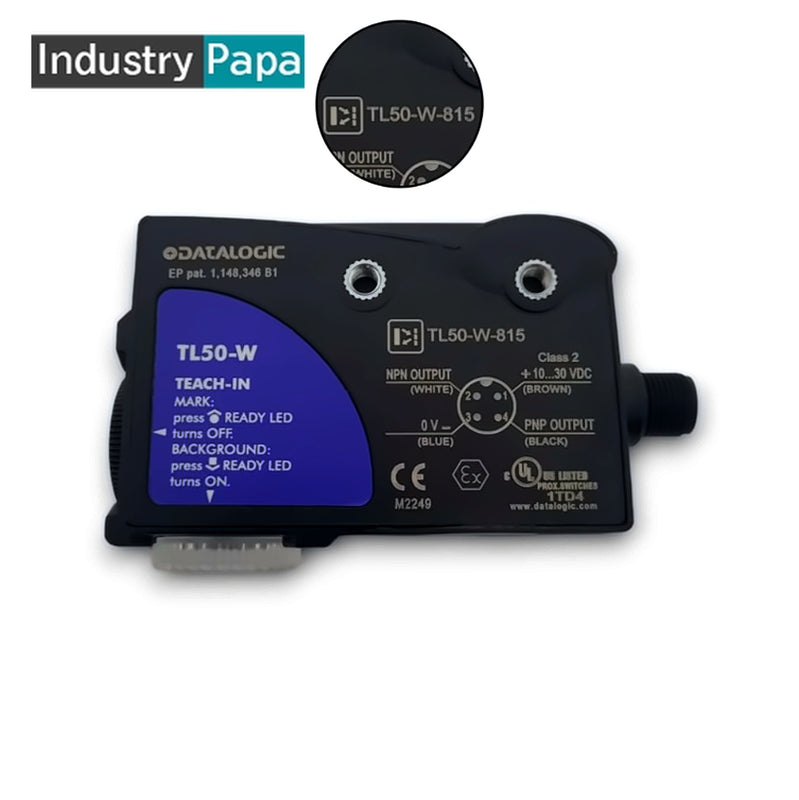

Datalogic TL50-W-815 RGB Contrast / Color Mark Sensor
RGB-LED contrast / color mark sensor with 9 mm sensing distance, teach-in setup and NPN/PNP output on an M12 connector.
Product Overview
The Datalogic TL50-W-815 (order code 954651000) is a RGB contrast / color mark sensor from the TL50 series, now produced under the Datasensing brand. RGB-LED contrast / color mark sensor with 9 mm sensing distance, teach-in setup and NPN/PNP output on an M12 connector.
TL50-W-815 Technical Specifications
| Brand | Datalogic (Datasensing) |
|---|---|
| Part Number / MPN | TL50-W-815 |
| Order Code | 954651000 |
| Sensor Type | Contrast / color mark sensor (TL50 series) |
| Light Emission | RGB LED |
| Sensing Distance | 9 mm (lens focus) |
| Light Spot | 1.5 × 5 mm, vertical |
| Adjustment | Teach-in |
| Output | NPN/PNP, Dark/Light selectable |
| Switching Frequency | 15 kHz (response 33 µs) |
| Supply Voltage | 10–30 V DC, ≤ 50 mA |
| Connection | M12 plug |
| Housing | Plastic ABS / PMMA, 31 × 53 × 80 mm |
| Protection | IP67 |
| Operating Temperature | −10 °C to +55 °C |
| Approvals | CE, cULus |
Specifications from the Datasensing product data for TL50-W-815. Please check the datasheet for wiring and response curves.
Typical Applications
- Registration / print-mark detection on packaging and printing machines
- Cut-to-mark control on pouch, bag and form-fill-seal machines
- Label and colour contrast detection in FMCG and pharma lines
- Web guiding and marker detection on converting lines
Why Buy TL50-W-815 from Industrypapa?
TL50-W-815 Supplier in India
Industrypapa supplies the Datalogic TL50-W-815 across India, including:
Frequently Asked Questions
Q1. What is the price of Datalogic TL50-W-815 in India?
The TL50-W-815 is listed at ₹9,000 on Industrypapa. For bulk quantities, contact us for a quote.
Q2. What does the TL50-W-815 detect?
It detects printed registration marks and colour contrast between a mark and its background, using RGB LED emission so it works on a wide range of colour combinations.
Q3. What is the sensing distance of TL50-W-815?
The nominal sensing distance is 9 mm with a 1.5 × 5 mm vertical light spot.
Q4. What output does TL50-W-815 have?
NPN/PNP output with Dark/Light selection, 15 kHz switching frequency, powered from 10–30 V DC through an M12 connector.
Q5. Is TL50-W-815 the same product after the Datalogic → Datasensing rebrand?
Yes. Datalogic's sensor business now operates as Datasensing; the part number TL50-W-815 (order code 954651000) and specifications are unchanged.
