TLµ-011 Datalogic Contrast Sensor

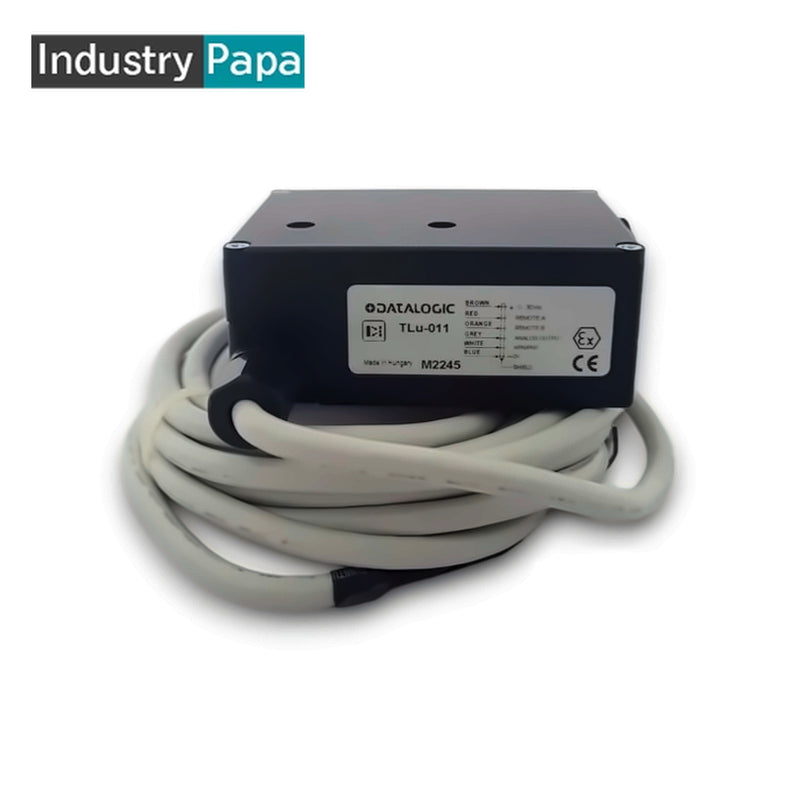

Datalogic TLU-011 Contrast Sensor
TLµ series contrast sensor with red/green LED emission, 9 mm sensing distance, teach-in and NPN output with 2 m cable, in a metal housing. Also listed as TLµ-011 / TLu-011.
Product Overview
The Datalogic TLU-011 (order code 964401000) is a contrast sensor from the TLu series, now produced under the Datasensing brand. TLµ series contrast sensor with red/green LED emission, 9 mm sensing distance, teach-in and NPN output with 2 m cable, in a metal housing.
TLU-011 Technical Specifications
| Brand | Datalogic (Datasensing) |
|---|---|
| Part Number / MPN | TLU-011 (TLµ-011 / TLu-011) |
| Order Code | 964401000 |
| Sensor Type | Contrast / registration mark sensor (TLµ series) |
| Light Emission | Red / green LED |
| Sensing Distance | 9 mm |
| Light Spot | 1.5 × 5 mm, vertical |
| Adjustment | Teach-in + remote teach |
| Output | NPN, Light/Dark selectable |
| Switching Frequency | 10 kHz (response 50 µs) |
| Supply Voltage | 10–30 V DC, ≤ 80 mA |
| Connection | 2 m cable |
| Housing | Metal (Zamak), orientable optics, 31 × 58 × 82 mm |
| Protection | IP67 |
| Operating Temperature | −10 °C to +55 °C |
| Approvals | CE, cULus |
Specifications from the Datasensing product data for TLU-011. Please check the datasheet for wiring and response curves.
Typical Applications
- Registration mark detection on printing and packaging machines
- Cut-to-mark on flow-wrap and pouch machines
- Label and print presence detection
- Tube and carton orientation marks
Why Buy TLU-011 from Industrypapa?
TLU-011 Supplier in India
Industrypapa supplies the Datalogic TLU-011 across India, including:
Frequently Asked Questions
Q1. What is the price of Datalogic TLU-011 in India?
The TLU-011 is listed at ₹9,500 on Industrypapa. For bulk quantities, contact us for a quote.
Q2. Is TLU-011 a sensor or a programming unit?
TLU-011 (TLµ-011) is a contrast / colour mark sensor. It is not a programming unit.
Q3. What is the difference between TLU-011 and TLU-015?
Both are TLµ contrast sensors with the same optics and NPN output. TLU-011 has a 2 m cable; TLU-015 has an M12 connector.
Q4. What is the sensing distance of TLU-011?
Nominal sensing distance is 9 mm with a 1.5 × 5 mm vertical spot.
Q5. Is TLU-011 the same product after the Datalogic → Datasensing rebrand?
Yes. Datalogic's sensor business now operates as Datasensing; the part number TLU-011 (order code 964401000) and specifications are unchanged.
Need help selecting the right sensor?
Talk to our automation engineers — we'll help you pick the correct Datalogic / Datasensing part for your application.
Get a Quote / Talk to Engineer →Related Products
