VXT-REX-C Series Digital PID Temperature Controllers
VXT-REX-C Series Digital PID Temperature Controllers VXT-REX-C100-A1 Digital PID Temperature Controller – REX-C100 48×48mm 4-Digit Dual LED Display, SSR Output, Universal Input (PT100/Thermocouple K J R S B E N T/0-20mA/0-5V), 100-240V AC Industrial Auto-Tuning Process Controller VXTREX-C100-A1 Series Digital PID Temperature Controllers VXT-REX-C100-A1 Series Digital PID Temperature Controllers
VoxinTech

VXT-REX-C100-A1 Digital PID Temperature Controller – REX-C100 48×48mm 4-Digit Dual LED Display, SSR Output, Universal Input (PT100/Thermocouple K J R S B E N T/0-20mA/0-5V), 100-240V AC Industrial Auto-Tuning Process Controller

Rs 715.00
✓ GST Invoice  |  Global Shipping  |  Genuine Product
Buy Now
Weight: 130 g

Description: VXT-REX-C100-A1  Voxintech  Digital PID Temperature Controllers

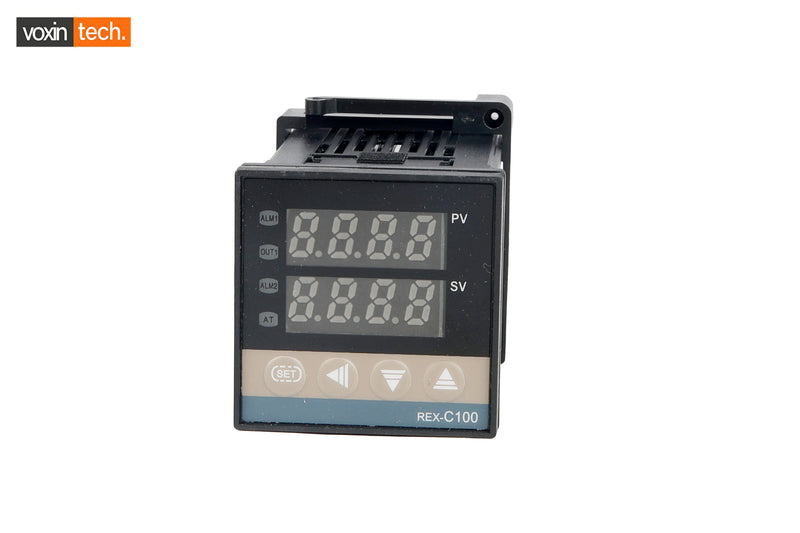

  • 4-digit dual LED display (PV: red, SV: green)
  • PID / ON-OFF control with auto-tuning
  • Universal input: TC (K, J, R, S, B, E, N, T)
  • RTD input: Pt100, Cu50
  • Analog input: 0-20mA, 0-5V, 0-50mV, 0-400Ω
  • SSR output (voltage pulse drive)
  • 1 alarm output (deviation / absolute)
  • Measurement accuracy: 0.5% / 1% FS (three grades)
  • Power supply: 100-240VAC, 50/60Hz
  • Operating range: 0 to 50°C
  • Available in 4 standard DIN panel sizes
  • Front panel keys: SET, shift, up, down

Replacement to  : RKC REX-C100, Selec TC513AX / PID500 / DTC503, GIC PR-15 / 151, Multispan UTC-121 / UTC-114, Omron E5CC-RX2ASM-800 / E5CSV, Autonics TCN4S-24R

Applications
Packaging Machinery • Plastic Injection Molding • Heat Treatment Furnaces • Ovens & Dryers • Extruders • Food Processing • Textile Machinery • HVAC Systems • Laboratory Equipment • Incubators • Sealing Machines

Click here to download catalogue PDF
