Pepperl-Fuchs Sensors

Pepperl+Fuchs (P&F) photoelectric and contrast sensors, in stock in India and shipped with a GST invoice. All eight part numbers use the M18 x 1 cylindrical metal housing (18GM60) and are rated IP67. If the P&F part you need is not listed, send us the part number and we will quote availability.

What does P&F stand for?

P&F is the everyday short form of Pepperl+Fuchs, the German industrial sensor manufacturer. You will also see it written as P+F, PNF or "Pepperl and Fuchs" - all of them refer to the same company. Its factory automation division makes the photoelectric, inductive, ultrasonic and rotary encoder products used on packaging lines, conveyors and machine tools; a separate process automation division covers explosion-protection equipment.

Pepperl+Fuchs sensors stocked at Industrypapa

Part number	Series	Sensing mode	Range
OBD200-18GM60-E4-IR-1C	OBD	Diffuse, adjustable	0-200 mm
OBD200-18GM60-E5-IR-1C	OBD	Diffuse, adjustable	0-200 mm
OBD500-18GM60-E5-IR-1C	OBD	Diffuse, adjustable	0-500 mm
OBT200-18GM60-E4	OBT	Diffuse	up to 200 mm
OBT200-18GM60-E5	OBT	Diffuse	up to 200 mm
OBT500-18GM60-E4	OBT	Diffuse	up to 500 mm

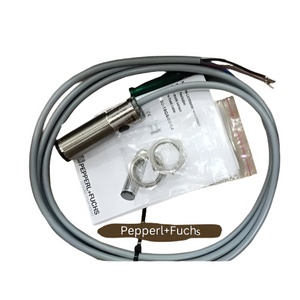

OBT-500-18GM60-E5	OBT	Diffuse	up to 500 mm
DK-20-95/110/124	DK	Contrast / registration mark	-

OBD series

Diffuse mode photoelectric sensors with an adjustable operating distance and infrared emission, in a strong M18 x 1 metal barrel with IP67 protection. Not sensitive to ambient light, so they stay dependable where factory lighting varies.

OBT series

The same 200 mm and 500 mm ranges in the same M18 form factor. The usual choice for straightforward object detection in automation, packaging and material handling machinery.

DK series

Contrast sensors in a robust IP67 industrial housing with eight M5 metal-reinforced mounting inserts, used for print-mark and registration-mark detection on packaging and labelling machines.

Buying Pepperl+Fuchs sensors in India

GST invoice with every order.
Pan-India delivery, and shipping to 220+ countries.
Parts not listed here. The Pepperl+Fuchs catalogue runs to thousands of items - send us the part number and we will come back on price and lead time.
Not sure of the part number? Tell us the sensing distance, housing size, output type and connection you need, and we will match it.

Common questions

Is P&F the same as Pepperl+Fuchs?

Yes. P&F, P+F and PNF are all abbreviations of Pepperl+Fuchs.

Which sensor do I need for 200 mm detection?

OBD200-18GM60 or OBT200-18GM60, both diffuse mode in an M18 housing. Choose the OBD version if you need the operating distance to be adjustable on the sensor itself.

Do you supply Pepperl+Fuchs inductive proximity switches?

The P&F range stocked here is photoelectric and contrast. For inductive proximity sensors held in stock we carry Datalogic, Micro Detectors and Telemecanique - see inductive proximity sensors. For P&F inductive part numbers, send us the code and we will quote it.
