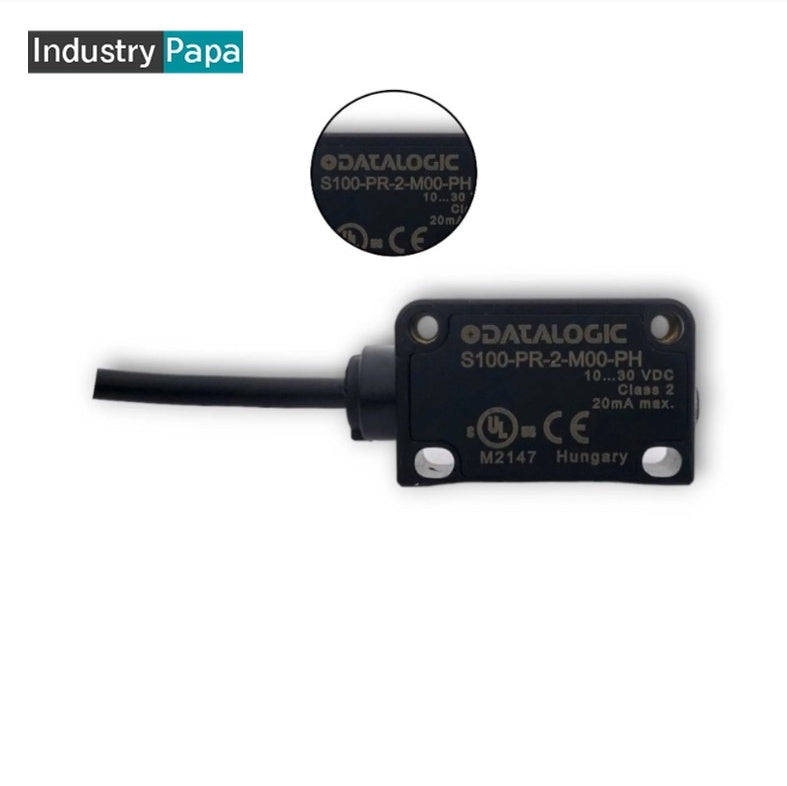

S100-PR-2-M00-PH Datalogic Photoelectric Sensor
Datalogic S100-PR-2-M00-PH Miniature photoelectric sensor with background suppression β Authorized Dealer & Stockist India
Buy the genuine Datalogic S100-PR-2-M00-PH (order code 950811130) from Industrypapa: background suppression sensing, 30β100 mm, PNP output with remote teach-in input and 2 m PVC cable, pre-wired. GST invoice and fast dispatch across India.
Product Overview
The Datalogic S100-PR-2-M00-PH is a miniature photoelectric sensor with background suppression from the S100 series made by Datalogic (now Datasensing). It comes in a miniature rectangular housing for compact machines. It runs on 10β30 V DC, is rated IP67 and uses a 2 m PVC cable, pre-wired.
Background suppression measures the angle of the returning light, not just how much comes back. The sensor switches for objects inside its 30β100 mm window and ignores anything behind it, even bright or reflective backgrounds. Dark and light objects switch at almost the same distance, so it is ideal where colours vary. The miniature housing fits where an M18 sensor will not.
S100-PR-2-M00-PH (950811130) Key Features
- Background suppression sensing β 30β100 mm
- Red LED, 632 nm light source
- PNP, with remote teach-in input output
- 2 m PVC cable, pre-wired
- Miniature rectangular ABS housing, 32 Γ 20 Γ 12 mm, IP67
- 10β30 V DC supply
- Radial (90Β°) optics β mounts parallel to the conveyor where there is no room in front
- Pre-wired cable β no connector needed; ideal for fixed installations
Technical Specifications
| Parameter | Value |
|---|---|
| Model | S100-PR-2-M00-PH |
| Datalogic order code | 950811130 |
| Series | Datalogic (Datasensing) S100 |
| Sensing type | Miniature photoelectric sensor with background suppression |
| Sensing range | 30β100 mm |
| Light source | Red LED, 632 nm |
| Optics | Radial (light exits from the side, 90Β°) |
| Output | PNP, with remote teach-in input |
| Switching frequency / response | see datasheet |
| Supply voltage | 10β30 V DC |
| Connection | 2 m PVC cable, pre-wired |
| Housing | Miniature rectangular ABS housing, 32 Γ 20 Γ 12 mm |
| Protection | IP67 |
Specifications from the Datalogic/Datasensing S100 datasheet. Always confirm against the latest datasheet for your application.
Typical Applications of S100-PR-2-M00-PH
- Detecting objects in front of conveyor frames or machine parts
- Small-part detection in compact machines
- Packaging and labelling where product colours vary
- Electronics assembly
- Pick-and-place and robot cells
S100-PR-2-M00-PH Wiring
PNP output plus a remote teach-in input on the white wire, so the sensor can be set up from the PLC or a push-button.
| Wire | Function |
|---|---|
| Brown | +V (10β30 V DC) |
| Blue | 0 V |
| Black | PNP output |
| White | Remote teach-in input |
Wire colours shown are for the cable version.
Installation Tips
Use the teach-in function with the object in place so the switching point is set correctly. Mount the sensor so the background is clearly further than 100 mm or outside the beam. Route the sensor cable away from motor and inverter cables to avoid electrical noise.
Related Datalogic Sensors
- Datalogic S5N-PA-5-C01-PP
- Datalogic S5N-PA-5-C21-PP
- Datalogic S5N-MA-5-C21-PP
- Datalogic S5N-PL-5-C01-PP
See the full range on our Datalogic sensors page.
S100-PR-2-M00-PH Dealer in India
Industrypapa supplies the Datalogic S100-PR-2-M00-PH across India with a GST invoice, including:
Frequently Asked Questions
Q. What type of sensor is the Datalogic S100-PR-2-M00-PH?
It is a miniature photoelectric sensor with background suppression from the Datalogic (Datasensing) S100 series, order code 950811130.
Q. What is the sensing range of S100-PR-2-M00-PH?
30β100 mm.
Q. Is S100-PR-2-M00-PH PNP or NPN?
PNP output plus a remote teach-in input on the white wire, so the sensor can be set up from the PLC or a push-button.
Q. How is S100-PR-2-M00-PH connected?
It uses a 2 m PVC cable, pre-wired and runs on 10β30 V DC.
Q. Where can I buy a genuine S100-PR-2-M00-PH in India?
Industrypapa supplies genuine Datalogic S100-PR-2-M00-PH with a GST invoice and delivery across India. Check the price and stock above or contact us for bulk quantities.
