S5N-PA-5-C01-PP Datalogic Photoelectric Sensor
Datalogic S5N-PA-5-C01-PP Diffuse proximity photoelectric sensor β Authorized Dealer & Stockist India
Buy the genuine Datalogic S5N-PA-5-C01-PP (order code 952001061) from Industrypapa: diffuse proximity sensing, 0β700 mm, PNP, NO + NC (complementary) output and M12 4-pin connector. GST invoice and fast dispatch across India.
Product Overview

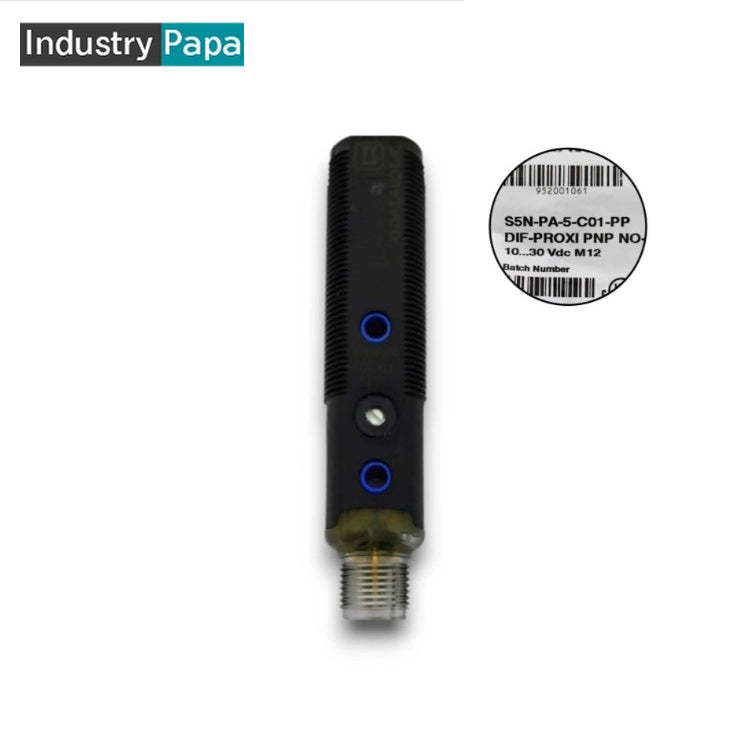

The Datalogic S5N-PA-5-C01-PP is a diffuse proximity photoelectric sensor (long range, with sensitivity trimmer) from the S5N series made by Datalogic (now Datasensing). It is built in the industry-standard M18 threaded tubular housing, so it fits existing brackets and mounting holes on most machines. It runs on 10β30 V DC, is rated IP67 and uses an M12 4-pin connector.
In diffuse (proximity) mode the emitter and receiver sit in the same housing. Light from the infrared LED hits the object and part of it is scattered back to the receiver; when enough light returns, the output switches. No reflector or separate receiver is needed, so only one side of the conveyor has to be wired. The sensitivity trimmer lets you set the switching point so the sensor sees the product but ignores a background further away.
S5N-PA-5-C01-PP (952001061) Key Features
- Diffuse proximity sensing β 0β700 mm (adjustable with trimmer)
- Infrared LED, 880 nm light source
- PNP, NO + NC (complementary) output
- M12 4-pin connector
- M18 threaded tubular, PBT plastic, IP67
- 10β30 V DC supply, short-circuit and reverse-polarity protected
- M12 quick-disconnect β replace the sensor in seconds without rewiring
Technical Specifications
| Parameter | Value |
|---|---|
| Model | S5N-PA-5-C01-PP |
| Datalogic order code | 952001061 |
| Series | Datalogic (Datasensing) S5N |
| Sensing type | Diffuse proximity photoelectric sensor (long range, with sensitivity trimmer) |
| Sensing range | 0β700 mm (adjustable with trimmer) |
| Light source | Infrared LED, 880 nm |
| Optics | Axial (light exits from the front face) |
| Output | PNP, NO + NC (complementary) |
| Switching frequency / response | 1 kHz / 0.5 ms |
| Supply voltage | 10β30 V DC |
| Connection | M12 4-pin connector |
| Housing | M18 threaded tubular, PBT plastic |
| Protection | IP67 |
| Operating temperature | β25 to +55 Β°C |
Specifications from the Datalogic/Datasensing S5N datasheet. Always confirm against the latest datasheet for your application.
Typical Applications of S5N-PA-5-C01-PP
- Box, carton and bottle detection on conveyors
- Presence checks on packaging and filling machines
- Part detection at assembly stations
- Counting products on belts where only one side is accessible
- Stack height and position checks in material handling
S5N-PA-5-C01-PP Wiring
Two outputs: one normally open (NO) and one normally closed (NC). Use either, or wire both to the PLC for wire-break checking.
| Wire | Function |
|---|---|
| Brown | +V (10β30 V DC) |
| Blue | 0 V |
| Black | PNP output NO |
| White | PNP output NC |
M12 pins: 1 brown, 2 white, 3 blue, 4 black.
Installation Tips
Point the sensor at the object, then turn the trimmer (where fitted) until it switches reliably on the object but not on the background. Keep at least the specified gap from shiny backgrounds. Route the sensor cable away from motor and inverter cables to avoid electrical noise.
Related Datalogic Sensors
- Datalogic S5N-PA-5-C21-PP
- Datalogic S5N-MA-5-C21-PP
- Datalogic S5N-PL-5-C01-PP
- Datalogic S5N-PR-5-B01-PP
See the full range on our Datalogic sensors page.
S5N-PA-5-C01-PP Dealer in India
Industrypapa supplies the Datalogic S5N-PA-5-C01-PP across India with a GST invoice, including:
Frequently Asked Questions
Q. What type of sensor is the Datalogic S5N-PA-5-C01-PP?
It is a diffuse proximity photoelectric sensor (long range, with sensitivity trimmer) from the Datalogic (Datasensing) S5N series, order code 952001061.
Q. What is the sensing range of S5N-PA-5-C01-PP?
0β700 mm (adjustable with trimmer).
Q. Is S5N-PA-5-C01-PP PNP or NPN?
Two outputs: one normally open (NO) and one normally closed (NC). Use either, or wire both to the PLC for wire-break checking.
Q. How is S5N-PA-5-C01-PP connected?
It uses an M12 4-pin connector and runs on 10β30 V DC.
Q. Where can I buy a genuine S5N-PA-5-C01-PP in India?
Industrypapa supplies genuine Datalogic S5N-PA-5-C01-PP with a GST invoice and delivery across India. Check the price and stock above or contact us for bulk quantities.
