S5N-PL-5-C01-PP Photoelectric Sensor
S5N-PL-5-C01-PP Photoelectric Sensor S5N-PL-5-C01-PP Photoelectric Sensor S5N-PL-5-C01-PP Photoelectric Sensor S5N-PL-5-C01-PP Photoelectric Sensor
Datalogic

Datalogic S5N-PL-5-C01-PP M18 Laser Diffuse Sensor | PNP NO+NC, M12

Rs 11,424.00
βœ“ GST Invoice  |  Global Shipping  |  Genuine Product
Weight: 300 g

Datalogic S5N-PL-5-C01-PP Laser diffuse photoelectric sensor β€” Authorized Dealer & Stockist India

Buy the genuine Datalogic S5N-PL-5-C01-PP (order code 952001391) from Industrypapa: laser diffuse sensing, 0–350 mm, PNP, NO + NC (complementary) output and M12 4-pin connector. GST invoice and fast dispatch across India.

100% GenuineGST InvoiceFast DispatchPan-India DeliveryTechnical SupportDownload Catalogue PDF

Product Overview

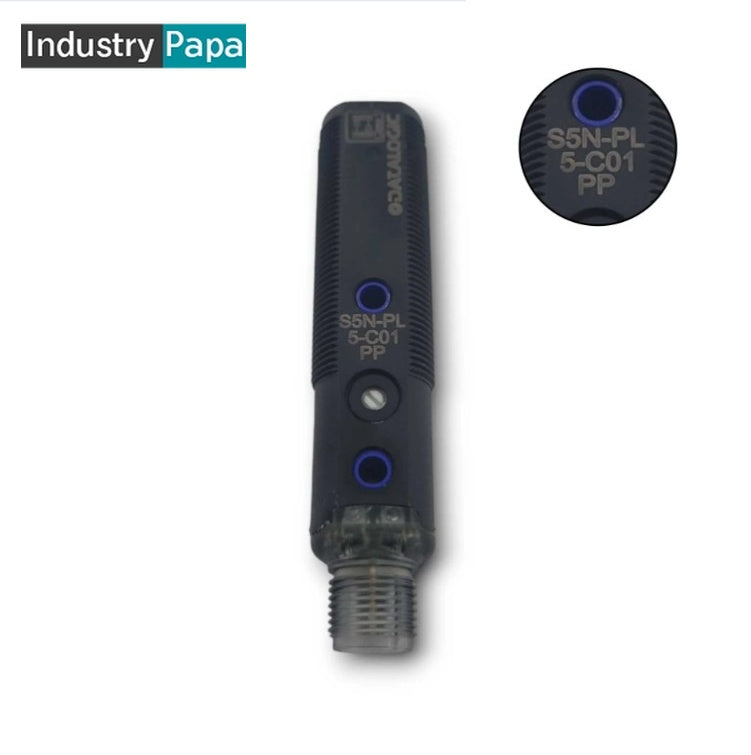

The Datalogic S5N-PL-5-C01-PP is a laser diffuse photoelectric sensor from the S5N series made by Datalogic (now Datasensing). It is built in the industry-standard M18 threaded tubular housing, so it fits existing brackets and mounting holes on most machines. It runs on 10–30 V DC, is rated IP67 and uses an M12 4-pin connector.

This version uses a Class 1 red laser instead of an LED. The laser gives a small, bright, visible spot, so the sensor can detect small parts, thin edges and precise positions in diffuse mode. Alignment is easy because you can see exactly where the beam hits, and the trimmer sets the switching distance.

S5N-PL-5-C01-PP (952001391) Key Features

  • Laser diffuse sensing – 0–350 mm (adjustable with trimmer)
  • Red laser, 650 nm, Class 1 light source
  • PNP, NO + NC (complementary) output
  • M12 4-pin connector
  • M18 threaded tubular, PBT plastic, IP67
  • 10–30 V DC supply, short-circuit and reverse-polarity protected
  • M12 quick-disconnect – replace the sensor in seconds without rewiring

Technical Specifications

Parameter Value
Model S5N-PL-5-C01-PP
Datalogic order code 952001391
Series Datalogic (Datasensing) S5N
Sensing type Laser diffuse photoelectric sensor
Sensing range 0–350 mm (adjustable with trimmer)
Light source Red laser, 650 nm, Class 1
Optics Axial (light exits from the front face)
Output PNP, NO + NC (complementary)
Switching frequency / response 1.5 kHz / 333 Β΅s
Supply voltage 10–30 V DC
Connection M12 4-pin connector
Housing M18 threaded tubular, PBT plastic
Protection IP67
Operating temperature βˆ’25 to +55 Β°C

Specifications from the Datalogic/Datasensing S5N datasheet. Always confirm against the latest datasheet for your application.

Typical Applications of S5N-PL-5-C01-PP

  • Detecting small components, pins and wires
  • Edge detection and precise positioning
  • Electronics and pharma assembly
  • Detecting objects through narrow openings
  • Applications where a visible alignment spot speeds up set-up

S5N-PL-5-C01-PP Wiring

Two outputs: one normally open (NO) and one normally closed (NC). Use either, or wire both to the PLC for wire-break checking.

Wire Function
Brown +V (10–30 V DC)
Blue 0 V
Black PNP output NO
White PNP output NC

M12 pins: 1 brown, 2 white, 3 blue, 4 black.

Installation Tips

Point the visible laser spot at the target and adjust the trimmer until the sensor switches reliably with and without the object. Never look directly into the beam. Route the sensor cable away from motor and inverter cables to avoid electrical noise.

S5N-PL-5-C01-PP Dealer in India

Industrypapa supplies the Datalogic S5N-PL-5-C01-PP across India with a GST invoice, including:

Delhi NCRNoidaGurugramMumbaiPuneAhmedabadBengaluruChennaiHyderabadKolkataLudhianaCoimbatore

Frequently Asked Questions

Q. What type of sensor is the Datalogic S5N-PL-5-C01-PP?
It is a laser diffuse photoelectric sensor from the Datalogic (Datasensing) S5N series, order code 952001391.

Q. What is the sensing range of S5N-PL-5-C01-PP?
0–350 mm (adjustable with trimmer).

Q. Is S5N-PL-5-C01-PP PNP or NPN?
Two outputs: one normally open (NO) and one normally closed (NC). Use either, or wire both to the PLC for wire-break checking.

Q. How is S5N-PL-5-C01-PP connected?
It uses an M12 4-pin connector and runs on 10–30 V DC.

Q. Where can I buy a genuine S5N-PL-5-C01-PP in India?
Industrypapa supplies genuine Datalogic S5N-PL-5-C01-PP with a GST invoice and delivery across India. Check the price and stock above or contact us for bulk quantities.
