S5N-PR-5-B01-PP Datalogic Photoelectric Sensor
Datalogic S5N-PR-5-B01-PP Polarised retro-reflective photoelectric sensor β Authorized Dealer & Stockist India
Buy the genuine Datalogic S5N-PR-5-B01-PP (order code 952001041) from Industrypapa: polarised retro-reflective sensing, up to 4 m on reflector, PNP, NO + NC (complementary) output and M12 4-pin connector. GST invoice and fast dispatch across India.
Product Overview

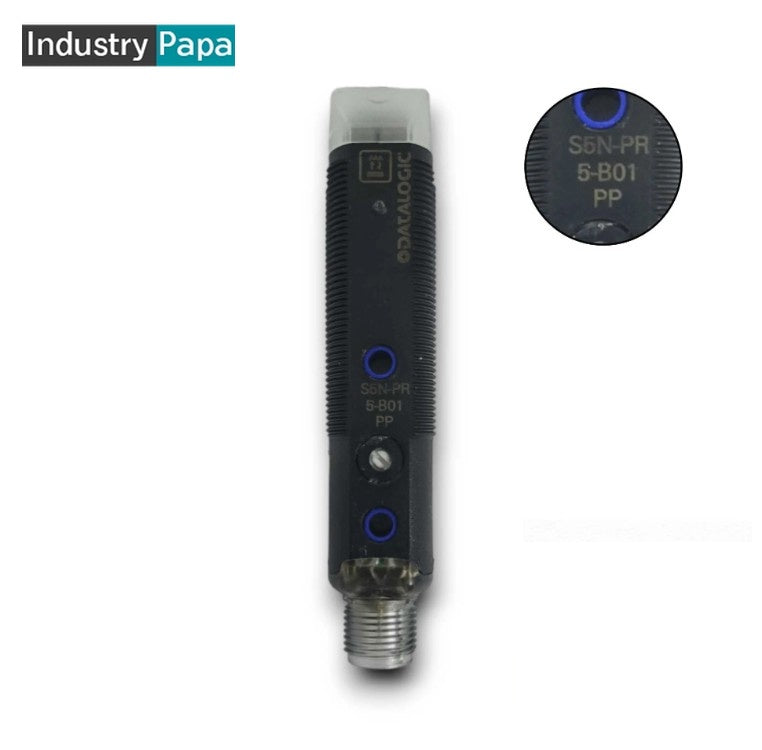

The Datalogic S5N-PR-5-B01-PP is a polarised retro-reflective photoelectric sensor from the S5N series made by Datalogic (now Datasensing). It is built in the industry-standard M18 threaded tubular housing, so it fits existing brackets and mounting holes on most machines. It runs on 10β30 V DC, is rated IP67 and uses an M12 4-pin connector.
A polarised retro-reflective sensor sends red light to a prismatic reflector mounted opposite and receives it back. When an object breaks the beam, the output switches. The polarising filter means the sensor only accepts light returned by a proper corner-cube reflector, so shiny objects such as tins, foil packs or glossy cartons do not reflect light back and cause false signals.
S5N-PR-5-B01-PP (952001041) Key Features
- Polarised retro-reflective sensing β Up to 4 m on reflector (axial-optics rating; radial versions can be lower β check datasheet)
- Red LED, 660 nm light source
- PNP, NO + NC (complementary) output
- M12 4-pin connector
- M18 threaded tubular, PBT plastic, IP67
- 10β30 V DC supply, short-circuit and reverse-polarity protected
- Radial (90Β°) optics β mounts parallel to the conveyor where there is no room in front
- M12 quick-disconnect β replace the sensor in seconds without rewiring
Technical Specifications
| Parameter | Value |
|---|---|
| Model | S5N-PR-5-B01-PP |
| Datalogic order code | 952001041 |
| Series | Datalogic (Datasensing) S5N |
| Sensing type | Polarised retro-reflective photoelectric sensor |
| Sensing range | Up to 4 m on reflector (axial-optics rating; radial versions can be lower β check datasheet) |
| Light source | Red LED, 660 nm |
| Optics | Radial (light exits from the side, 90Β°) |
| Output | PNP, NO + NC (complementary) |
| Switching frequency / response | 1 kHz / 0.5 ms |
| Supply voltage | 10β30 V DC |
| Connection | M12 4-pin connector |
| Housing | M18 threaded tubular, PBT plastic |
| Protection | IP67 |
| Operating temperature | β25 to +55 Β°C |
Specifications from the Datalogic/Datasensing S5N datasheet. Always confirm against the latest datasheet for your application.
Typical Applications of S5N-PR-5-B01-PP
- Detecting shiny or reflective products on conveyors
- Pallet and carton detection across conveyor widths
- Door, gate and passage monitoring
- Height and overhang control
- Counting with a single wired device and a passive reflector
S5N-PR-5-B01-PP Wiring
Two outputs: one normally open (NO) and one normally closed (NC). Use either, or wire both to the PLC for wire-break checking.
| Wire | Function |
|---|---|
| Brown | +V (10β30 V DC) |
| Blue | 0 V |
| Black | PNP output NO |
| White | PNP output NC |
M12 pins: 1 brown, 2 white, 3 blue, 4 black.
Installation Tips
Mount the reflector square to the beam at the required distance and align until the stability LED is on. Use Datalogic prismatic reflectors β flat mirrors or reflective tape will not work with the polarising filter. Route the sensor cable away from motor and inverter cables to avoid electrical noise.
Related Datalogic Sensors
- Datalogic S5N-PA-5-C01-PP
- Datalogic S5N-PA-5-C21-PP
- Datalogic S5N-MA-5-C21-PP
- Datalogic S5N-PL-5-C01-PP
See the full range on our Datalogic sensors page.
S5N-PR-5-B01-PP Dealer in India
Industrypapa supplies the Datalogic S5N-PR-5-B01-PP across India with a GST invoice, including:
Frequently Asked Questions
Q. What type of sensor is the Datalogic S5N-PR-5-B01-PP?
It is a polarised retro-reflective photoelectric sensor from the Datalogic (Datasensing) S5N series, order code 952001041.
Q. What is the sensing range of S5N-PR-5-B01-PP?
Up to 4 m on reflector (axial-optics rating; radial versions can be lower β check datasheet).
Q. Is S5N-PR-5-B01-PP PNP or NPN?
Two outputs: one normally open (NO) and one normally closed (NC). Use either, or wire both to the PLC for wire-break checking.
Q. How is S5N-PR-5-B01-PP connected?
It uses an M12 4-pin connector and runs on 10β30 V DC.
Q. Where can I buy a genuine S5N-PR-5-B01-PP in India?
Industrypapa supplies genuine Datalogic S5N-PR-5-B01-PP with a GST invoice and delivery across India. Check the price and stock above or contact us for bulk quantities.
