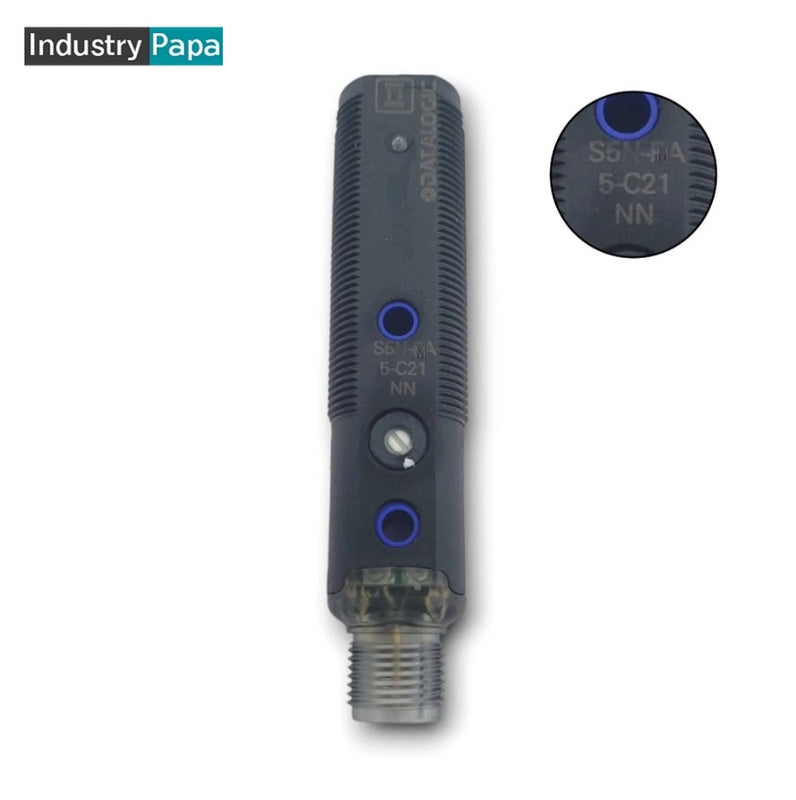

S5N-MA-5-C21-NN Datalogic Photoelectric Sensor
Datalogic S5N-MA-5-C21-NN Diffuse proximity photoelectric sensor β Authorized Dealer & Stockist India
Buy the genuine Datalogic S5N-MA-5-C21-NN (order code 952022151) from Industrypapa: diffuse proximity sensing, 0β400 mm, NPN, NO + NC (complementary) output and M12 4-pin connector. GST invoice and fast dispatch across India.
Product Overview
The Datalogic S5N-MA-5-C21-NN is a diffuse proximity photoelectric sensor (medium range, fixed) from the S5N series made by Datalogic (now Datasensing). It is built in the industry-standard M18 threaded tubular housing, so it fits existing brackets and mounting holes on most machines. It runs on 10β30 V DC, is rated IP67 and uses an M12 4-pin connector.
In diffuse (proximity) mode the emitter and receiver sit in the same housing. Light from the infrared LED is reflected by the object back into the receiver and the output switches. The medium, fixed range of about 400 mm makes the sensor easy to install: there is nothing to adjust, and objects further away are less likely to trigger it.
S5N-MA-5-C21-NN (952022151) Key Features
- Diffuse proximity sensing β 0β400 mm
- Infrared LED, 880 nm light source
- NPN, NO + NC (complementary) output
- M12 4-pin connector
- M18 threaded tubular, nickel-plated brass (metal), IP67
- 10β30 V DC supply, short-circuit and reverse-polarity protected
- Metal housing β tougher for harsh industrial areas and mechanical knocks
- M12 quick-disconnect β replace the sensor in seconds without rewiring
Technical Specifications
| Parameter | Value |
|---|---|
| Model | S5N-MA-5-C21-NN |
| Datalogic order code | 952022151 |
| Series | Datalogic (Datasensing) S5N |
| Sensing type | Diffuse proximity photoelectric sensor (medium range, fixed) |
| Sensing range | 0β400 mm |
| Light source | Infrared LED, 880 nm |
| Optics | Axial (light exits from the front face) |
| Output | NPN, NO + NC (complementary) |
| Switching frequency / response | 1 kHz / 0.5 ms |
| Supply voltage | 10β30 V DC |
| Connection | M12 4-pin connector |
| Housing | M18 threaded tubular, nickel-plated brass (metal) |
| Protection | IP67 |
| Operating temperature | β25 to +55 Β°C |
Specifications from the Datalogic/Datasensing S5N datasheet. Always confirm against the latest datasheet for your application.
Typical Applications of S5N-MA-5-C21-NN
- Product presence on conveyors and packaging lines
- Part-in-place checks in fixtures and machines
- Detecting bottles, cartons and pouches
- Counting products at moderate distances
- Simple replacement for older M18 diffuse sensors
S5N-MA-5-C21-NN Wiring
Two outputs: one normally open (NO) and one normally closed (NC), for PLC inputs configured for NPN (sinking) sensors.
| Wire | Function |
|---|---|
| Brown | +V (10β30 V DC) |
| Blue | 0 V |
| Black | NPN output NO |
| White | NPN output NC |
M12 pins: 1 brown, 2 white, 3 blue, 4 black.
Installation Tips
Point the sensor at the object, then turn the trimmer (where fitted) until it switches reliably on the object but not on the background. Keep at least the specified gap from shiny backgrounds. Route the sensor cable away from motor and inverter cables to avoid electrical noise.
Related Datalogic Sensors
- Datalogic S5N-PA-5-C01-PP
- Datalogic S5N-PA-5-C21-PP
- Datalogic S5N-MA-5-C21-PP
- Datalogic S5N-PL-5-C01-PP
See the full range on our Datalogic sensors page.
S5N-MA-5-C21-NN Dealer in India
Industrypapa supplies the Datalogic S5N-MA-5-C21-NN across India with a GST invoice, including:
Frequently Asked Questions
Q. What type of sensor is the Datalogic S5N-MA-5-C21-NN?
It is a diffuse proximity photoelectric sensor (medium range, fixed) from the Datalogic (Datasensing) S5N series, order code 952022151.
Q. What is the sensing range of S5N-MA-5-C21-NN?
0β400 mm.
Q. Is S5N-MA-5-C21-NN PNP or NPN?
Two outputs: one normally open (NO) and one normally closed (NC), for PLC inputs configured for NPN (sinking) sensors.
Q. How is S5N-MA-5-C21-NN connected?
It uses an M12 4-pin connector and runs on 10β30 V DC.
Q. Where can I buy a genuine S5N-MA-5-C21-NN in India?
Industrypapa supplies genuine Datalogic S5N-MA-5-C21-NN with a GST invoice and delivery across India. Check the price and stock above or contact us for bulk quantities.
