S5N-PA-2-G00-XG Datalogic Photoelectric Sensor
Datalogic S5N-PA-2-G00-XG Through-beam emitter β Authorized Dealer & Stockist India
Buy the genuine Datalogic S5N-PA-2-G00-XG (order code 952001191) from Industrypapa: through-beam sensing, up to 20 m with matching S5N through-beam receiver, no switching output (emitter only) and 2 m PVC cable, pre-wired. GST invoice and fast dispatch across India.
Product Overview

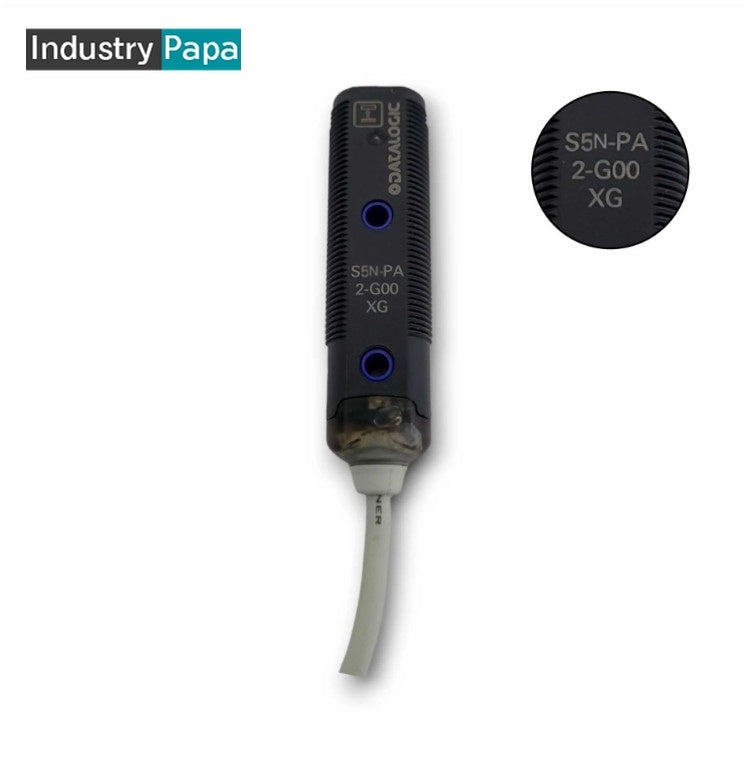

The Datalogic S5N-PA-2-G00-XG is a through-beam emitter (transmitter) β use with a matching S5N receiver from the S5N series made by Datalogic (now Datasensing). It is built in the industry-standard M18 threaded tubular housing, so it fits existing brackets and mounting holes on most machines. It runs on 10β30 V DC, is rated IP67 and uses a 2 m PVC cable, pre-wired.
In through-beam mode the emitter and the receiver are installed opposite each other. This model is the emitter only: it sends a continuous infrared beam and has no switching output. The matching S5N through-beam receiver switches its output when an object interrupts the beam. Through-beam is the most reliable photoelectric method and gives the longest range, up to about 20 m for the pair.
S5N-PA-2-G00-XG (952001191) Key Features
- Through-beam sensing β Up to 20 m with matching S5N through-beam receiver
- Infrared LED, 880 nm light source
- None (emitter only) output
- 2 m PVC cable, pre-wired
- M18 threaded tubular, PBT plastic, IP67
- 10β30 V DC supply
- Pre-wired cable β no connector needed; ideal for fixed installations
Technical Specifications
| Parameter | Value |
|---|---|
| Model | S5N-PA-2-G00-XG |
| Datalogic order code | 952001191 |
| Series | Datalogic (Datasensing) S5N |
| Sensing type | Through-beam emitter (transmitter) β use with a matching S5N receiver |
| Sensing range | Up to 20 m with matching S5N through-beam receiver |
| Light source | Infrared LED, 880 nm |
| Optics | Axial (light exits from the front face) |
| Output | None (emitter only) |
| Switching frequency / response | 250 Hz / 2 ms (system) |
| Supply voltage | 10β30 V DC |
| Connection | 2 m PVC cable, pre-wired |
| Housing | M18 threaded tubular, PBT plastic |
| Protection | IP67 |
| Operating temperature | β25 to +55 Β°C |
Specifications from the Datalogic/Datasensing S5N datasheet. Always confirm against the latest datasheet for your application.
Typical Applications of S5N-PA-2-G00-XG
- Long-distance detection across wide conveyors
- Detection in dusty or dirty environments
- Opaque object detection regardless of colour or surface
- Gate, door and passage monitoring
- Replacing a failed emitter in an existing S5N pair
S5N-PA-2-G00-XG Wiring
This is an emitter: it has no switching output. The output is on the matching receiver.
| Wire | Function |
|---|---|
| Brown | +V (10β30 V DC) |
| Blue | 0 V |
Wire colours shown are for the cable version.
Installation Tips
Mount the emitter and receiver on the same axis and align them using the receiver's indicator LED. Keep lenses clean and protect cables from moving parts. Route the sensor cable away from motor and inverter cables to avoid electrical noise.
Related Datalogic Sensors
- Datalogic S5N-PA-5-C01-PP
- Datalogic S5N-PA-5-C21-PP
- Datalogic S5N-MA-5-C21-PP
- Datalogic S5N-PL-5-C01-PP
See the full range on our Datalogic sensors page.
S5N-PA-2-G00-XG Dealer in India
Industrypapa supplies the Datalogic S5N-PA-2-G00-XG across India with a GST invoice, including:
Frequently Asked Questions
Q. What type of sensor is the Datalogic S5N-PA-2-G00-XG?
It is a through-beam emitter (transmitter) β use with a matching S5N receiver from the Datalogic (Datasensing) S5N series, order code 952001191.
Q. What is the sensing range of S5N-PA-2-G00-XG?
Up to 20 m with matching S5N through-beam receiver.
Q. Is S5N-PA-2-G00-XG PNP or NPN?
This is an emitter: it has no switching output. The output is on the matching receiver.
Q. How is S5N-PA-2-G00-XG connected?
It uses a 2 m PVC cable, pre-wired and runs on 10β30 V DC.
Q. Where can I buy a genuine S5N-PA-2-G00-XG in India?
Industrypapa supplies genuine Datalogic S5N-PA-2-G00-XG with a GST invoice and delivery across India. Check the price and stock above or contact us for bulk quantities.
