S5N-PA-5-E01-PP Datalogic Photoelectric Sensor
Datalogic S5N-PA-5-E01-PP Fibre-optic amplifier in M18 housing β Authorized Dealer & Stockist India
Buy the genuine Datalogic S5N-PA-5-E01-PP (order code 952001141) from Industrypapa: fibre-optic sensing, range set by the fibre, PNP, NO + NC (complementary) output and M12 4-pin connector. GST invoice and fast dispatch across India.
Product Overview

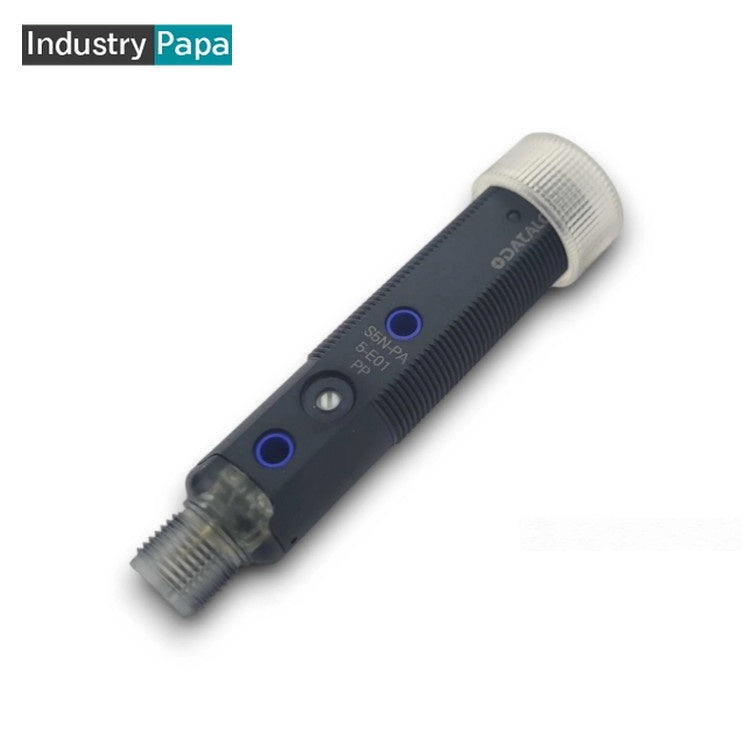

The Datalogic S5N-PA-5-E01-PP is a fibre-optic amplifier in M18 housing from the S5N series made by Datalogic (now Datasensing). It is built in the industry-standard M18 threaded tubular housing, so it fits existing brackets and mounting holes on most machines. It runs on 10β30 V DC, is rated IP67 and uses an M12 4-pin connector.
This S5N version is a fibre-optic amplifier: the light source and receiver are in the M18 body, and plastic optical fibres carry the light to and from the detection point. The fibre tips are tiny and flexible, so you can detect very small objects or sense in tight spaces, hot areas or moving parts where a normal sensor will not fit. The range depends on the fibre you choose.
S5N-PA-5-E01-PP (952001141) Key Features
- Fibre-optic sensing β Depends on fibre: e.g. 30 mm diffuse (OF-42), 100 mm through-beam (OF-43)
- Red LED, 630 nm light source
- PNP, NO + NC (complementary) output
- M12 4-pin connector
- M18 threaded tubular, PBT plastic, IP67
- 10β30 V DC supply, short-circuit and reverse-polarity protected
- M12 quick-disconnect β replace the sensor in seconds without rewiring
Technical Specifications
| Parameter | Value |
|---|---|
| Model | S5N-PA-5-E01-PP |
| Datalogic order code | 952001141 |
| Series | Datalogic (Datasensing) S5N |
| Sensing type | Fibre-optic amplifier in M18 housing |
| Sensing range | Depends on fibre: e.g. 30 mm diffuse (OF-42), 100 mm through-beam (OF-43) |
| Light source | Red LED, 630 nm |
| Optics | Axial (light exits from the front face) |
| Output | PNP, NO + NC (complementary) |
| Switching frequency / response | 1 kHz / 0.5 ms |
| Supply voltage | 10β30 V DC |
| Connection | M12 4-pin connector |
| Housing | M18 threaded tubular, PBT plastic |
| Protection | IP67 |
| Operating temperature | β25 to +55 Β°C |
Specifications from the Datalogic/Datasensing S5N datasheet. Always confirm against the latest datasheet for your application.
Typical Applications of S5N-PA-5-E01-PP
- Detecting very small parts in tight spaces
- Sensing near moving or hot machine parts
- Electronic component and PCB detection
- Pharma and medical device assembly
- Mark and edge detection with suitable fibres
S5N-PA-5-E01-PP Wiring
Two outputs: one normally open (NO) and one normally closed (NC). Use either, or wire both to the PLC for wire-break checking.
| Wire | Function |
|---|---|
| Brown | +V (10β30 V DC) |
| Blue | 0 V |
| Black | PNP output NO |
| White | PNP output NC |
M12 pins: 1 brown, 2 white, 3 blue, 4 black.
Installation Tips
Insert the fibres fully into the amplifier and lock them. Avoid tight bends in the fibre, then adjust sensitivity with the object present and absent. Route the sensor cable away from motor and inverter cables to avoid electrical noise.
Related Datalogic Sensors
- Datalogic S5N-PA-5-C01-PP
- Datalogic S5N-PA-5-C21-PP
- Datalogic S5N-MA-5-C21-PP
- Datalogic S5N-PL-5-C01-PP
See the full range on our Datalogic sensors page.
S5N-PA-5-E01-PP Dealer in India
Industrypapa supplies the Datalogic S5N-PA-5-E01-PP across India with a GST invoice, including:
Frequently Asked Questions
Q. What type of sensor is the Datalogic S5N-PA-5-E01-PP?
It is a fibre-optic amplifier in M18 housing from the Datalogic (Datasensing) S5N series, order code 952001141.
Q. What is the sensing range of S5N-PA-5-E01-PP?
Depends on fibre: e.g. 30 mm diffuse (OF-42), 100 mm through-beam (OF-43).
Q. Is S5N-PA-5-E01-PP PNP or NPN?
Two outputs: one normally open (NO) and one normally closed (NC). Use either, or wire both to the PLC for wire-break checking.
Q. How is S5N-PA-5-E01-PP connected?
It uses an M12 4-pin connector and runs on 10β30 V DC.
Q. Where can I buy a genuine S5N-PA-5-E01-PP in India?
Industrypapa supplies genuine Datalogic S5N-PA-5-E01-PP with a GST invoice and delivery across India. Check the price and stock above or contact us for bulk quantities.
